Donaldson Torit (DCE) Dry Filter Bag Dust Extractor

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Stock No
EX1673
Manufacturer
Donaldson Torit (DCE)
Model
UMA 102 G3
Serial
159.084
New or Used
Used (Second Hand)
Approx Duty CFM / M³/Hr
600//1000
Filter Area ft² / m²
100/10
Other Info
Auto Shake bag filter
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
232
External Dimensions (WxDxH mm)
1050 x 700 x 2360

Description

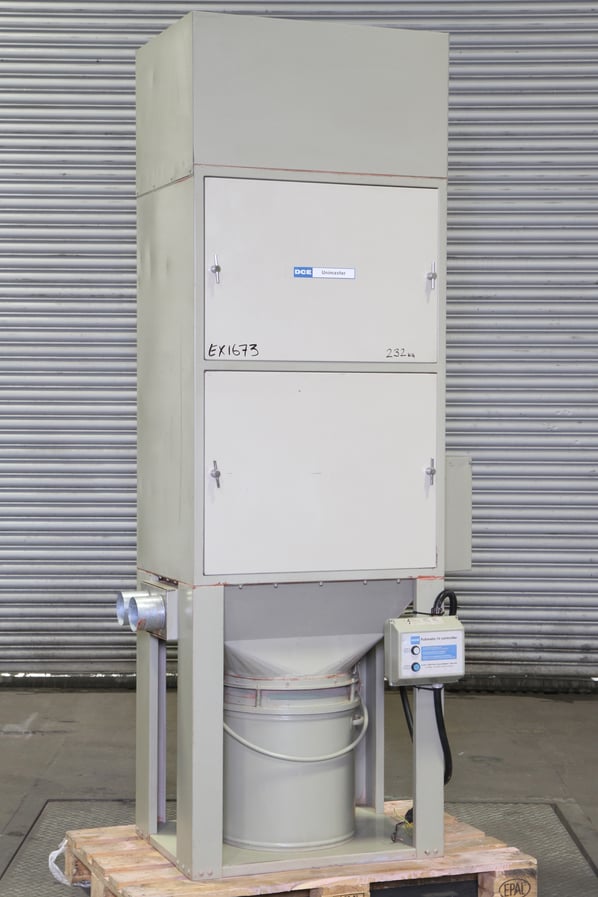

This pre owned Unimaster 102 G3 dust collector from Donaldson Torit is designed to maximize dust collection and the life of the collector components for years of extended service, the Unimaster collector’s compact design and quiet operation provides efficient, trouble-free service.

A self-contained collector with everything needed to begin collecting dust, the Unimaster comes complete with fan and fan motor, automatic shaker and shaker motor, and system controller making installation quick and easy. Since the automatic shaker cleans the bag filters, there is no need for expensive compressed air. Ideal for intermittent operations in plant processes, the Unimaster can be used as a central system or at the point of dust generation.

Design features

• Compact Design
Minimises floor space and fits in virtually any plant layout.
•Versatility
To suit a variety of dust collection applications
•Quiet & Efficient Operation
Motors and 2hp fan are enclosed in collector housing to minimize noise.
•Easy Maintenance
•4³ft collection bucket
•Quick-Release Lever
Allows for easy removal and maintenance of bin.
•Inlet Deflector
Knocks down larger particles into the hopper reducing bag abrasion and increasing bag filter life.
•Heavy-duty flexible metal inner bag coils
Inserted into filter bags keeps bags open to maximize airflow and assist in knocking dust off during cleaning cycle.
•Bag-Release Screws
Allow for easy removal of bags.


pdf icon Print / Download Donaldson Torit (DCE) Dry Filter Bag Dust Extractor Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
