Machines & equipment for sale

Layton High Quality Enclosed Multi Phase Cleaning plant

Special Offer

Refurbished Price [?]
£ 24,950 (+ VAT)
Special Price (refurbished) [?]
£ 22,950 (+ VAT)
Special Price (sold as seen) [?]
£ 14,000 (+ VAT). Available for immediate collection.
Special offer ends
23 January 2020 16:00 GMT while stocks last
Condition
Seen working by RSW, Excellent Condition, Ex demonstration, Current Model
Stock No
DX1269S
Manufacturer
Layton
Model
ISLA SpA IW20
Year of Manufacture
2007
Serial
MAC102667
Work Envelope (WxDxH mm)
320 x 480 x 200
Process Stages
Multiple + Steam clean & vacuum drying
Other Info
Exceptional high standard of cleaning
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm)
1100 x 1500 x 2250

Description

Layton Bluestream Aqueous Metal Degreasing plant

Parts clean in a single chamber using a combination of immersion, spray and ultrasonic agitation + Vacuum and hot air drying options.

Parts are loaded via front door, once door is closed a seal is formed and the holding tank fills with water.

Once the wash cycle is complete water drain's from the chamber and then the wetted parts are dried using vacuum process.

 Complete with inbuilt  fully programmable touch screen computer

Sequence of treatment

Filling of the pump - To prime the pump water is circulated from the tank of the machine and back to the tank of the machine. In the meantime the tank reaches the requested temperature of 80°c

Rinsing pieces - Through the circulation pump water is taken in form tank 1 and pumped through the filter and the in-line heater by the spray injectors into the treatment chamber. A part of the dirt of the pieces is removed. This procedure goes on until reaching the set level in the chamber.

Pre-washing - The removed dirt is now filtered and additional dirt is dissolved. This is done by circulating the water by the pump from the chamber, through the filters and the in-line heater back to the chamber.

Emptying the treatment chamber - After the end of the pre-cleaning cycle, the water is discharged form the machine.

High level in chamber - Water is pumped by the circulation pump from tank 2 through the spray injectors in to the treatment chamber passing by the filter and the in-line heater. This procedure carries on until reaching the set level in the chamber.

Washing cycle - The removed dirt is filtered and additional dirt is dissolved. This is done by circulating the water by the pump from the chamber, through the filters and the in-line heated back to the chamber.

Emptying the treatment chamber- After the washing cycle the water is discharged from the treatment chamber through the filter and pump then pumped to tank 1 until the maximum level is reached. the additional water is discharged from the machine.

Degreasing with vapours - For degreasing the pieces steam vapours at a temperature of 140°c are introduced to the treatment chamber directly from the boiler

Emptying the piping - Before staring the drying cycle the piping is emptied from the residual water, furthermore the level in tank 2 is restored automatically

Vacuum drying - Through the vacuum pump, air and steam vapours are sucked from the treatment chamber until reaching an absolute pressure of about 80 mbar in the chamber. After reaching the set pressure of 80 mbar the vacuum is broken to atmospheric pressure.

Drying at atmospheric pressure - By means of the turbine air is circulated through the heater and conveyed to the treatment chamber. Here the air yields part of its heat and the water evaporates form the treated pieces. The air now saturated with steam vapours then passes through a cooler where the water may condense. These heating and cooling cycles of air are repeated until the load is completely dry.

Programmable computer

General features

Display
7.5" Graphic Display
Resolution = 640 x 480 dots
Fluorescent retro illumination
Resistive touch screen panel

1/0
Main board inside the IL3 Touch Screen computer
17 digital single point set relay outputs with potential free and normally opened contact (max 24 Volts, 5 A)
32 digital outputs in direct current 24 Vdc
analogue outputs 0-10V
analogue outputs 0-10V for inverter control
32 opto isolated digital inputs in 24 Vdc
analogue inputs for PTC o PT100
2 analogue inputs 0-10V
2 analogue inputs for drying control

Hardware
IL3 Touch Screen Computer
CPU board with RS 232 interface for PC communication and RS 485 interface for network communication between other IL3 TS connected to a PCResistive touch screen panel RS485 connection on backside RS232 connection on front side
Lamp protection mode by switching off display after 10 minutes of non-use


Software
Memory capacity for 50 programs 60 steps for each program
10 functions for each step
Simplified programming through the use of graphic symbols Messages are stored with date for statistics and control operations Possibility to assign program and step description individually
Wide possibilities to communicate with PC for download and upload of all machine data Possibility to monitor the machine functions on-line by PC
6 languages for selection by customer
Possibility to assign to every symbol one ore more electric commands (outputs) Possibility to program special functions through the PLC language
Flexible alarms management, permitting to modify messages or adding new ones determining the alarm level
It is possible to program the automatic starting of some functions





Model Treatment chamber



W20

Diameter

mm

450

Depth

mm

550

Volume

I

96

Basket holder





Width

mm

330

Depth

mm

490

Height



210

Max eatload

kg

50

Loading door size





Width

mm

450

Height

mm

320

Rotation speed basket holder





Min.

min 1

2

Max.

min 1

12

Effective volume





Tank 1

I

70

Tank 2

I

70

Water load





Max.

I

140

Max.

k

140

Machine dimensions





Width

mm

1070

Depth

mm

1415

Height

mm

2120

Weights





Empty weight

kg

650

Installation connections





Compressed air





Connection



1/4

Pressure

bar

7

Flow rate

1/min

50

Cooling water





Connection



1/2

Pressure

Max. temperature

bar

3-5

25

Flow rate, min

m3/h0.5















pdf icon Print / Download Layton High Quality Enclosed Multi Phase Cleaning plant Datasheet

Additional files

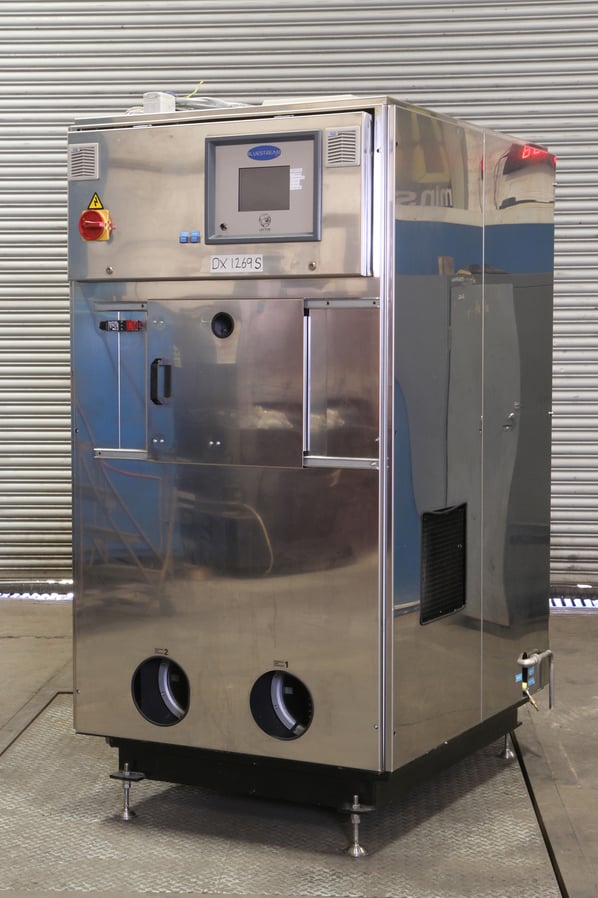

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
