Machines & equipment for sale

SNOL 420/300/LSN11

New

Price [?]
£ Login or Register for price
Guarantee
1 year manufacturer guarantee
Availability:
In stock now
Condition
Brand New, Current Model
Stock No
OX1889
Manufacturer
SNOL
Model
420/300/LSN11
Year of Manufacture
2018
Serial
282
New or Used
New
Internal Size (WxDxH mm)
1000 x 470 x 870
Max Temp
300°C
Other Info
Variable Speed Fan Control
Weight (kgs)
178 kg
External Dimensions (WxDxH mm)
1250 x 885 x 1230

Description

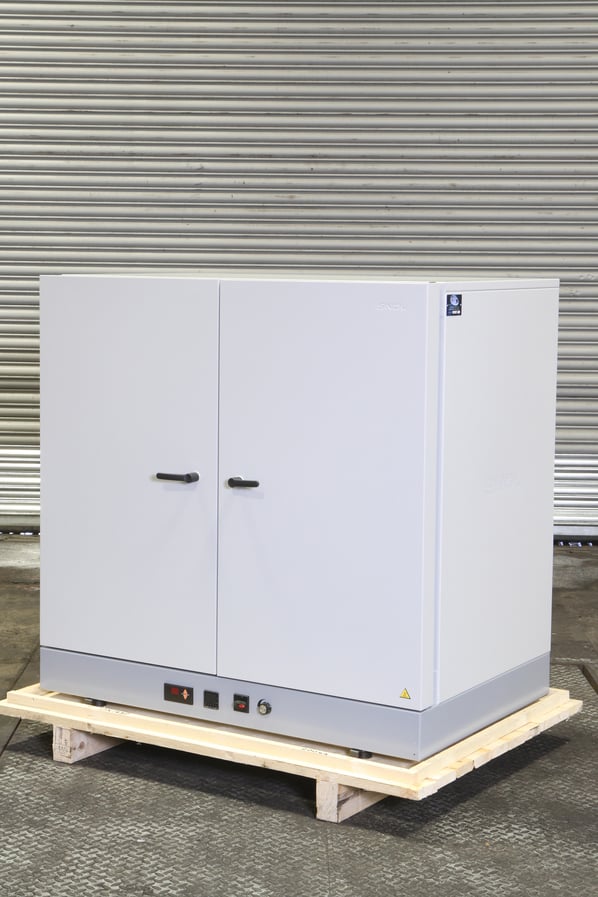

The 420-300LSN11 is a 420ltr - 300°C bench top batch oven with twin variable speed air circulation fans, stainless steel interior and Omron EC5 Controller suitable for a wide range of industrial processing applications

Standard features include:

  • Double over heat protection system
  • Eurotherm and Omron micro processor temperature controller with auto tuning function
  • Twin Stainless steel multi position shelves
  • SSR heater relay for close control
  • High quality thermal insulation
  • 3 pressed stainless steel shelves
  • Short heating time
  • Heating is from all four sides
  • Hermetic door seal
  • Low power consumption
  • Excellent performance and reliability
  • The external construction is clad in mild steel sections, with a powder painted exterior
  • Air circulation is critical for efficient and uniform heating and horizontal air flow is achieved via twin variable (0-100%) fans which maximise temperature uniformity
  • Fitted with twin side hinged doors
  • Adjustable chamber ventilation to exhaust smoke or other fumes

Technical specifications:

  • Temperature range max 300ºC
  • Chamber dimensions, mm W 1000 x D 500 x H 860
  • Chamber Material St. steel
  • Volume L 420
  • External dimensions, mm W 1200 x D 930 x H 1200
  • Power kW 6
  • Voltage V 400
  • Weight kg 155

pdf icon Print / Download SNOL 420/300/LSN11 Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
