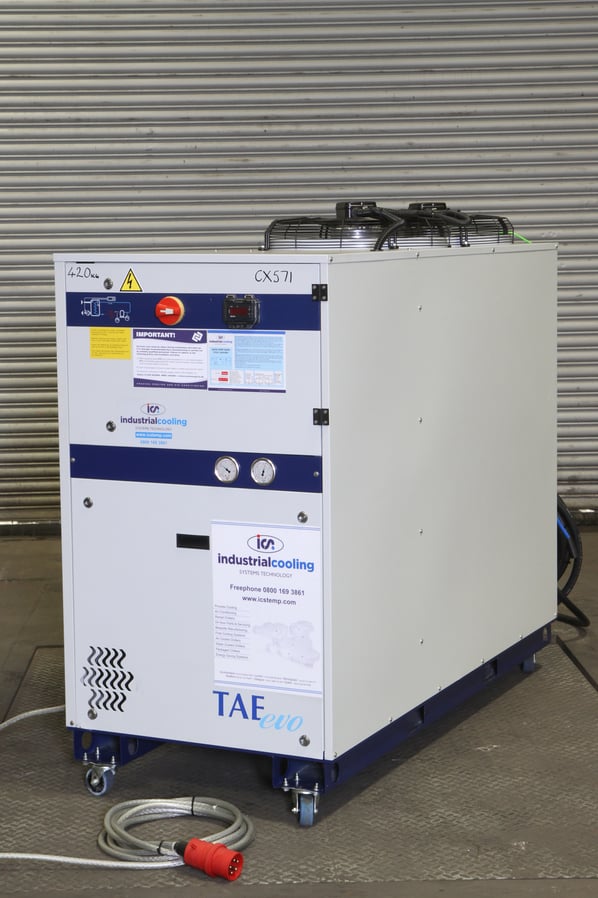

Industrial Cooling Systems (ICS) TAE EVO 101 Water Chiller

Stock No
CX571
Manufacturer
Industrial Cooling Systems (ICS)
Model
TAE EVO 101
Year of Manufacture
2009
Serial
2200149977
New or Used
Used (Second Hand)
Ave. cooling capacity
42kWat15ccwlt
Ave. Water Flow Rate
7.2-9.6m3/h
Other Info
Full service history
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
386
External Dimensions (WxDxH mm)
800 x 2150 x 1550

Description

A popular pre-owned self contained air cooled package chiller having a cooling capacity 42kW at 15ºc CWLT (chilled water leaving temperature) in an ambient of 32ºc.

Suitable for a wide range of solution and water cooling applications including cooling of anodising plating applications, injection moulding, food, diary, laser cutting and air conditioning to name but a few.

This fully packaged chiller contains a single Maneurop fully hermetic compressor with optional non-ferrous food safe cooling circuit.

With quick-release water and power connections, this chiller has been designed for a fast installation and start up.

The chiller can be supplied with an atmospheric or pressured set-up and can manage a wide range of temperature requirements (+20 to –0oC)

The 42kW chiller contains a 255 litre buffer tank and a circulation pump, which draws from the tank to supply the incumbent cooling system.

The chiller cycles off when the set outlet temperature in the evaporator has been achieved.

Technical Specifications

Dimensions (mm) 770 x 1890 x 1440
Weight (kg) 386
Water Connections 1 1/2” Female BSP
Max/Min Water Flow (m3/h) 7.2/9.6 m3/h
Running Current (Amps) 25
Power Supply 400(±10%)/3/50
Max Power Absorbed (kW) 14.6
Power Sound level (dB(A)) 54.1 @ 10m
Nominal Cooling Duty (kW) 45 @ 15°C (38.5 @ 15°C)
Single axial condenser cooling fans.
Refrigerant - R407
max refigeration pressure - 26BAR
ambient water temp - 5/43°C
Additional details

Electrical supply 25A / 400v / 3ph / 50Hz
Refrigerant gas - R407C - 6.9kg charge
Max working pressure - 6bar
Max working temp + 35°C

pdf icon Print / Download Industrial Cooling Systems (ICS) TAE EVO 101 Water Chiller Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
