Kerry ( Guyson International ) Microclean Special MF 1500/4 Cleaner

Direct From Site Clearance

Direct Site Clearance Price [?]
£ 18,750 (+ VAT)
Part of a Direct Site Clearance
Kerry Microclean Special MF 1500/4
Condition
From a working environment, Refurbished by RSW, Good Condition
Location
Cheltenham, UK
Stock No
VER001
Manufacturer
Kerry ( Guyson International )
Model
Microclean Special MF 1500/4
Year of Manufacture
1998
Serial
58759/1-7/98
New or Used
Used (Second Hand)
Work Envelope (WxDxH mm)
400 x 600 x 570 mm
Process Stages
4 Wash, rinse DI rinse, twin hot air dry
Other Info
Refurbished in 2015
Location
Cheltenham, UK
Weight (kgs)
1350kgs
External Dimensions (WxDxH mm)
5350 x 1500 x 2700 mm

Description

Used Special MF 1500/4 aqueous cleaning system (heated ultrasonic clean, rinse, rinse, warm air dry) suits a wide range of cleaning needs in aerospace, precision, electronics and other industries. Closed loop high purity deionised water rinsing provides organic and ionic cleanliness superior to MIL standard.

Kerry Special MF 1500/4 Ultrasonic Cleaning Plant

This machine was Refurbished in 2015 by RSW.

This used multistage aqueous Kerry Special MF 1500/4 Ultrasonic Cleaning Cell, has been well maintained an upgraded to the latest specifications with the retro fitting of the latest ultrasonic 3K generators and intelligent robotic handling system. The machine achieves precision cleaning to the most demanding and exacting of cleaning standards.

The process features of this excellent cleaning machine are as follows:

Stage 1 Clean

Heated Immersion ultrasonic clean with solution filtration, mechanical basket agitation, power drain and surface contamination weir off facility with spray sparge return for solution agitation.

Stage 2 1st stage Town water rinse

Immersion rinse with mechanical basket agitation, power and surface contamination weir off facility with spray sparge return for solution agitation.

Stage 3 Di Contraflow 2nd stage Rinse

Immersion Di rinse with clean water monitoring, mechanical basket agitation, power drain, filtration and surface contamination weir off facility with spray sparge return for solution agitation.

Stage 4 - Hot Air Dry

Twin station hot air condenser drying station with automated pneumatic lid operation

Details:

Tank Sizes of (Internal) 450 x 650 x 600mm deep

Closed loop high purity Purite exchange bottle deionised water system with conductivity monitoring.

Machine mounted Mitsubishi PLC control with operator MMI interface panel for setting the machines variables and parameters of temperatures, filtration and the operation of the machine for use in the manual mode.

The Autotrans Mk3 Major handling System controls the pick and place procedure of the process and operates the systems variables and actions such as ultrasonic switching, process timers, sparge spray application and the operation of the drying stage pneumatic lids.

The robot can process a single basket or fixture from start to finish or operate with multiple loads to utilise each station. The handling system is loaded via the feed and exit conveyors.

Automation of the process reduces running costs with aqueous systems by assuring consistent, repeatable quality, reducing reject rates, and increasing throughput.

Technical Autotrans Major Specification:

Load capacity 80 kg
Vertical speed* 17m/min
Horizontal speed* 30m/min
Accuracy +/- 1mm
Gearbox output speed
horizontal 111 rpm max
vertical 74 rpm max
Motor speed
horizontal 3330 rpm max
vertical 2960 rpm max

pdf icon Print / Download Kerry ( Guyson International ) Microclean Special MF 1500/4 Cleaner Datasheet

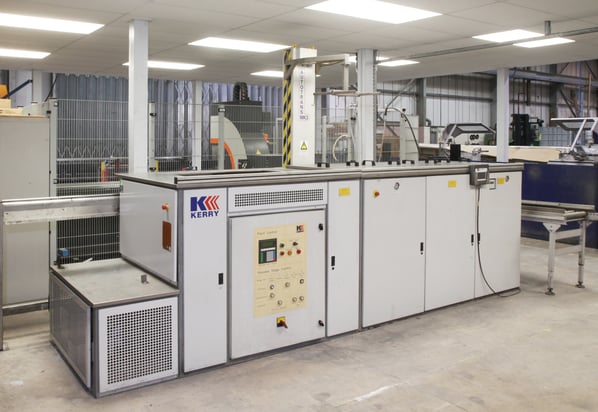

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
