Machines & equipment for sale

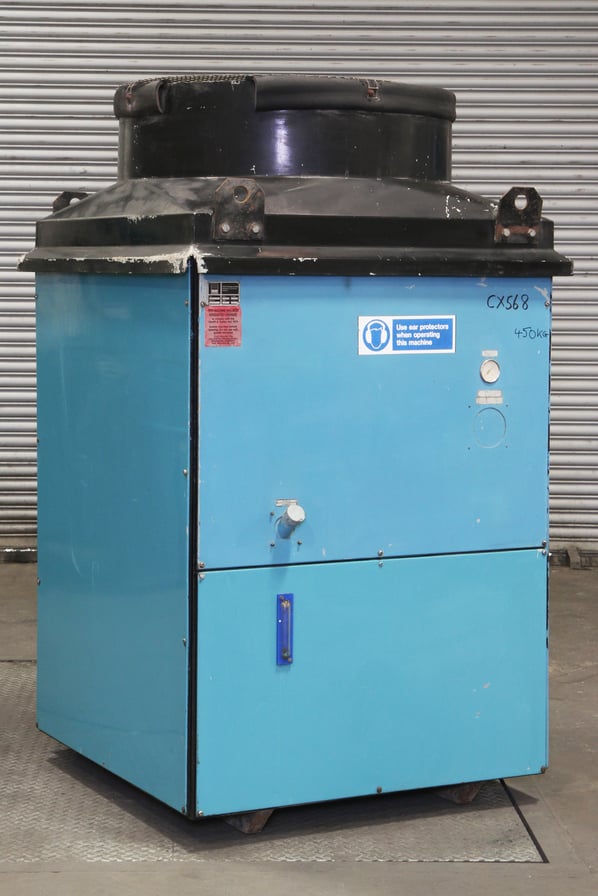

F and R Cooling Ltd Air Blast Cooler

Stock No
CX568
Manufacturer
F and R Cooling Ltd
Model
50kw
Year of Manufacture
1984
Serial
4947/84
New or Used
Used (Second Hand)
Ave. cooling capacity
43000 Kcal/hr / 50 Kw
Ave. Water Flow Rate
4.3 m3/hr
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
450 kg
External Dimensions (WxDxH mm)
1160 x 1260 x 1960

Description

Industry relies on water to cool much of its reduction machinery, the cooling of this essential resource can be achieved in a number of ways:

Using water…

  • straight off the mains
  • via evaporative cooling towers
  • through dry air coolers
  • via a refrigeration system
  • via existing ring main of cool water

Cooling Capacity

The cooling capacity of the dry air coolers is based on cooling water through 10°C so that it is returned to the process 10°C above ambient temperatures i.e., in an ambient of 20°C water will be cooled from 40°C to 30°C. The heat extraction rate will vary according to the differential between the inlet and ambient temperature. The greater this differential the greater the heat extraction rate of the cooler.

Advantages:

  • Fully packaged for ease of installation
  • Fully sealed system
  • Non-ferrous water circuitry
  • Low utility costs (water and electricity)
  • Simple maintenance (no chemical cleaning)
  • No expensive water treatment
  • No water loss
  • No corrosion issues
  • Heat recovery

COOLING DUTY

Air on to heat exchanger at 25°C (cooled water off at 35°C) Kcal/hr 43000

kW 50

Ambient temperature range for the standard design °C +10°C to +50°C

Cooled water temperature (in the standard design) °C Ambient +10°C Note: equipment subject to ambient below 5°C will require antifreeze or mechanical frost protection system.

pdf icon Print / Download F and R Cooling Ltd Air Blast Cooler Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
