Machines & equipment for sale

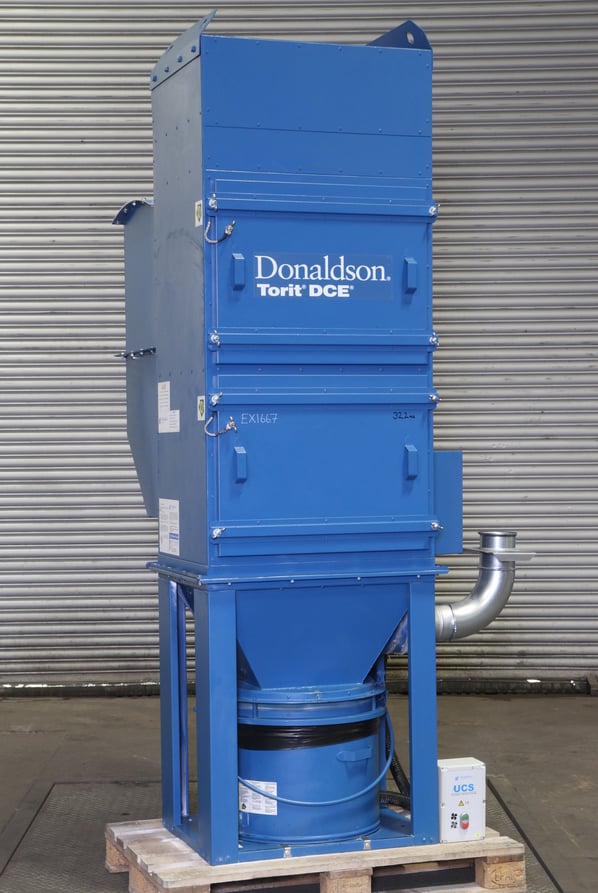

Donaldson Torit (DCE) UMA103

Stock No
EX1667
Manufacturer
Donaldson Torit (DCE)
Model
UMA 103K3
Year of Manufacture
2013
Serial
00051508
New or Used
Used (Second Hand)
Approx Duty CFM / M³/Hr
1,000 //1,699
Filter Area ft² / m²
100//9.29m2
Other Info
ATEX explosion panel - Blast redirection
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
300 kg
External Dimensions (WxDxH mm)
1300 x 1400 x 2630

Description

This pre owned Unimaster 103 K3  1.5 kW dust collector from Donaldson Torit is designed to maximize dust collection and the life of the collector components for years of extended service, the Unimaster collector’s compact design and quiet operation provides efficient, trouble-free service.

A self-contained collector with everything needed to begin collecting dust, the Unimaster comes complete with fan and fan motor,explosion relief panel, automatic shaker, and shaker motor, and system controller making installation quick and easy.

Since the automatic shaker cleans the bag filters, there is no need for expensive compressed air. Ideal for intermittent operations in plant processes, the Unimaster can be used as a central system or at the point of dust generation.

Design features

  •  Compact Design
  • Minimises floor space and fits in virtually any plant layout.
  • Versatility
  • Explosion Relief with 90 degree angled deflector
  • To suit a variety of dust collection applications
  • Powerful
  • 1.5kW fan set
  • Quiet & Efficient Operation
  • Motor and fan are enclosed in collector housing to minimize noise.
  • Easy Maintenance
  • 80 litre waste collection bucket
  • Quick-Release Lever
  • Allows for easy removal and maintenance of bin.
  • Inlet Deflector
  • Knocks down larger particles into the hopper reducing bag abrasion and increasing bag filter life.
  • Heavy-duty flexible metal inner bag coils
  • Inserted into filter bags keeps bags open to maximize airflow and assist in knocking dust off during cleaning cycle.
  • Bag-Release Screws
  • Allow for easy removal of bags.
  • Silencer box with weather cowl exhaust for out door siting.
  • Weight 300 kg
  • 203 Ø inlet spigot

pdf icon Print / Download Donaldson Torit (DCE) UMA103 Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
