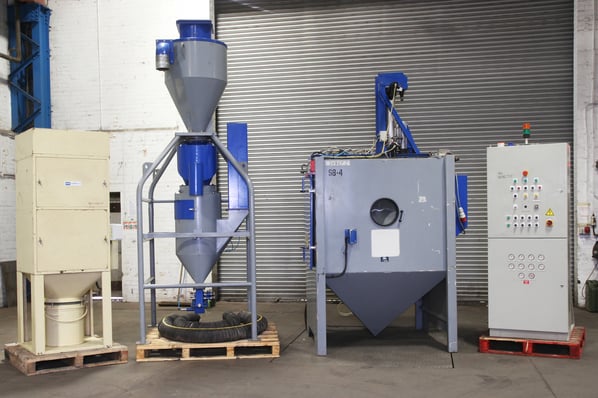

Vacublast (Wheelabrator) Ventus 150S Semi Automated Blast Machine

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition, Current Model
Stock No
SX827J
Manufacturer
Vacublast (Wheelabrator)
Model
Ventus model 150S
New or Used
Used (Second Hand)
Work Envelope (WxDxH mm)
1500 x 1300 x 900
Work Handling Method
Semi Automatic
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm)
3300 x 1960 x 2000

Description

The  Wheelabrator Vacublast Ventus model 150S Semi Automatic Peener is a suction feed air blast cabinet has been designed specifically for production applications where a less aggressive surface treatment is required.

Blast chamber

The machine comes complete with an adjustable vertical rod-less cylinder reciprocating gun arm and swing out variable speed motorised rotary table (max load 250kg)arranged for fixturing.

The fully abrasive rubber lined cabinet has a single  access doors fitted with safety interlock.

The cabinet utilises high volume suction fed blast nozzles, that currently operates 8 suction venturi guns to accommodate complex profiled applications.

The matching dust extractor both powers the cyclonic separator for the media recovery and waste stream dust removal from the cabinet. Auto media fill available.

 A much sought after Wheelabrator Ventus 150 S large capacity suction blast cabinet with swing out rotary table, reclamation cleansing unit and associated reverse pulse cartridge dust extractor, designed and built for a wide range of industries.

 Additional cabinet features include:

- Internal lighting
- large viewing window
- Large operator armlets
- R/H loading door
- 1mtr swing out load table
- 250kg load capacity
- Adjustable blasting pressure

The unit is paired with a matching reverse pulse cartridge dust extractor and attached cyclonic reclamation cleansing unit.











pdf icon Print / Download Vacublast (Wheelabrator) Ventus 150S Semi Automated Blast Machine Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
