Kerry ( Guyson International ) Compact C450A MK2A With Auto Trans MK3 Robotic Handler

Special Offer

Refurbished Price [?]
£ 29,750 (+ VAT)
Special Price (refurbished) [?]
£ 26,750 (+ VAT)
Special offer ends
18 December 2020 16:00 GMT while stocks last
Condition
Refurbished by RSW, Excellent Condition
Stock No
DX1257J
Manufacturer
Kerry ( Guyson International )
Model
C450A MK2A
Year of Manufacture
1-9-95
Serial
56564/1-9-95
Condition
Refurbished by RSW, Excellent Condition
Work Envelope (WxDxH mm)
320 X 400 X 320
Process Stages
3
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm)
3700 X 1250 X 2350

Description

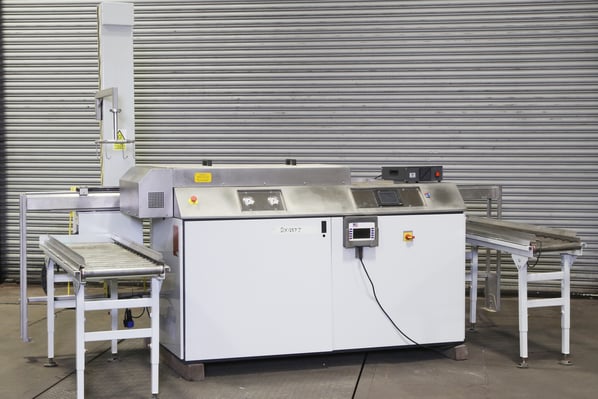

Kerry C450A with MK3 Autotrans, load and unload gravity conveyors

This ultrasonic has been refurbished to a high standard by a UK contractor who is able to provide installation, commissioning and training.

  • 3 Stages & Dry
  • Ultrasonic wash, rinse, wash
  • Vertical mechanical agitation
  • MK3 Auto trans for automated handling
  • Load and Unload conveyors

The specification is:

Stage 1 heated with pumped filtration and ultrasonic submersible.

Stage 2 Automatic towns water rinse,

Stage 3 closed loop pumped filtration with the ability to have DI cylinders fitted.

Single forced air dryer.  The wet stages have vertical agitation.

During the refurbishment the following work has been completed;

  • The machine was fully stripped down.
  • All components that have been reused have been thoroughly cleaned and inspected.
  • The machine frame was stripped back to bare metal and re-powder coated.
  • A new control panel with new components was installed.
  • New HMI Screen fitted (Omron).
  • New cable trunking was installed.
  • All new cabling was installed.
  • The old switch panel was replaced by a new HMI Touch screen and PLC.
  • Stage 1 pipe work was totally replaced.
  • A brand new Ultrasonic generator has been installed.
  • A new filter housing was installed to stage 3.
  • New pressure gauges and gauge plate were installed.
  • All remaining pipework was stripped down inspected and cleaned.
  • All pneumatic tubing and solenoids were replaced.
  • New heaters were installed to stage 1.
  • The hot air dryer was stripped down and overhauled.
  • New doors, side and back panels were manufactured and installed.
  • The vertical agitation was stripped down and refurbished.
  • The load and unload conveyors were stripped down, re-powder coated and rollers cleaned.
  • The Autotrans was fully stripped down, re-powder coated, cleaned and rewired.
  • New horizontal bearings were installed on the Autotrans.
  • New fixings were used throughout.

 CRV Control Systems Support

This machine is available with installation, commissioning, training, service and maintenance programme, if required. CRV controls have been a Rileys partner for many years and support many Kerry & ultrasonic machines all over the UK including specialist repairs of our ultrasonic machines.

pdf icon Print / Download Kerry ( Guyson International ) Compact C450A MK2A With Auto Trans MK3 Robotic Handler Datasheet

Additional files

Details of Refurbishment

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
