Machines & equipment for sale

Guyson International Super 4 Blast Cabinet

Stock No
SX824
Manufacturer
Guyson International
Model
Super 4
Serial
48462W
New or Used
Used (Second Hand)
Work Envelope (WxDxH mm)
740 x 550 x 400
Work Handling Method
Manual
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
135 kg
External Dimensions (WxDxH mm)
880 x 640 x 1660

Description

This second hand Guyson Super 4 cabinet is highly durable, rigid and tightly sealed, fabricated and welded in 16 gauge sheet steel. As industry leaders, the machine boasts exceptional component entry facilities and sleeved armholes which provide safe and comfortable operator access.

This shot blasting equipment offers a faster alternative to labour intensive operations such as hand deburring, scraping and wire brushing, chemical cleaning, acid etching or dipping, liquid honing, knife trimming, sanding, grinding and many others, ideal for component producers, reconditioners and remanufacturers seeking to replace these slower and more labour intensive methods.

The Super 4 uses compressed air to propel blast media directly at the component through an exclusively designed blast gun. These clean and safe operations are housed in an illuminated cabinet from which dust is constantly removed and the blast media recycled to provide a reliable cleaning and finishing system.

This machine is capable of using a wide selection of blast media at various blast pressures.

Specifications:-

  • Internal usable dimensions 740 x 550 x 400 mm
  • maximum load 15kg
  • Front loading doors with twin sets of operator armholes
  • Variable pressure regulator
  • DC41 Dust extractor dims - 470 x 600 x 1045 mm

pdf icon Print / Download Guyson International Super 4 Blast Cabinet Datasheet

Additional files

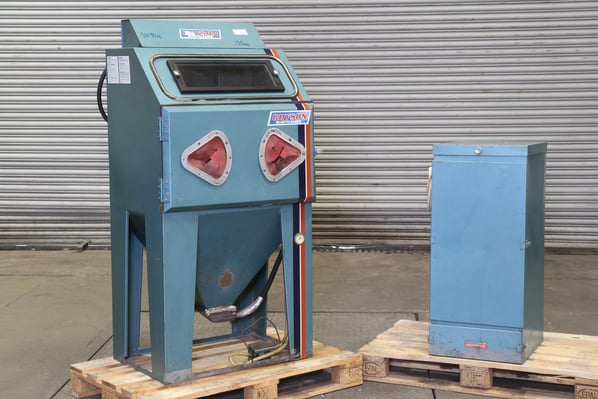

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
