Hodge Clemco Enviroclean IND1250 Twin Reciprocating Gun Abrasive Blasting Machine

Direct From Site Clearance

Direct Site Clearance Price [?]
£ 12,500 (+ VAT)
Clearance ends
09 January 2019 15:00 GMT while stocks last
Part of a Direct Site Clearance
Hunting Energy Services
Condition
From a working environment
Location
Aberdeen, Scotland, UK
Stock No
HUN200
Manufacturer
Hodge Clemco
Model
IND 1250
Year of Manufacture
2014
Serial
HC 11640 No2
New or Used
Used (Second Hand)
Work Envelope (WxDxH mm)
1250 x 1000 x 1000
Work Handling Method
Semi automatic
Other Info
Unused in as NEW condition
Location
Aberdeen, Scotland, UK
External Dimensions (WxDxH mm)
1350 x 1050 x 2150

Description

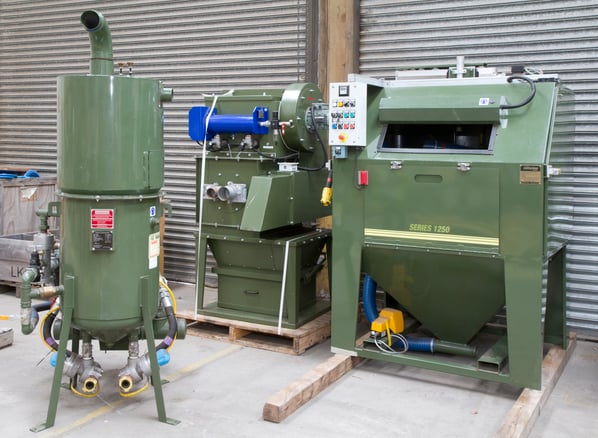

Hodge Clemco IND 1250 Pressure Feed Blast Cabinet

Pressure feed hand blast cabinets are essential when removing heavy corrosion, tough coatings or when high production rates are required.  Cleaning rates are up to 5 times faster than those of a suction cabinet and are suitable for use with heavier, long life abrasives such as iron and steel.

 Pressure feed machines are commonly used in high production environments or on applications such as the cleaning and descaling of heavy castings.

This semi automatic version has been fitted with an electro-mechanical reciprocator to offer twin gun manipulation in the X axis. The doors have been fitted with entry exit vestibules with removable and interchangeable cover plates to allow the passing of long tubes, bar and sections.

The reciprocator is attached to a multi positional blast gun holders, so that the height, angle and distance of the gun from the workpiece can be adjusted to reach optimum performance. The reciprocator is driven through an inverter drive offering variable speed manipulation of the blasting guns, whilst a stroke counter determines the number of passes the gun will make before stopping and resetting the process ready for the next workpiece.

The original  application was designed to clean the mill scale from both the internal and external diameters of large diameter tube, and clean the threads of oil pipe, and drill tubes.

Feature include:

  • Manual and auto operation
  • Large interchangeable side wall entry vestibules
  • Large work chamber area,
  • High visibility chamber with large viewing window
  • Glove aperture carefully designed to accommodate users of different heights and facilitate easy and safe component handling
  • Manual glove isolation with interlock when running in automatic mode
  • Supplied with a Hodge Clemco large capacity 2040 200kg, twin outlet blast pot
  • Pneumatic foot pedal control for instant operation in the manual mode.
  • Control panel with oscillation speed control, stroke count, "B" or "A+B" nozzle selection, cycle start and cycle reset.
  • Vacuum recovery unit to minimise blockages in the machine.
  • Abrasive regrader unit to allow for accurate media cleaning on a range of abrasive types.
  • Pressure regulator for fine control of air pressure.
  • Abrasive grit valves for accurate adjustment of media feed rate.
  • Safety door interlock system which interrupts blasting operation in the event of any of the doors being opened.
  • MJ Mini 9/22/2-2 High capacity reverse pulse, extraction unit to aid visibility and cleanliness inside the blast cabinet.
  • Heavy duty internal rubber curtains.

 Suitable materials processing:

Metals

  • Removal of Corrosion, Millscale, Coatings
  • Deburring
  • Peening
  • Surface Preparation
  • Cosmetic Surface Finishing
  • Brazing Flux Removal

Plastics

  • Composites,
  • Rubber
  • Deflashing of mouldings
  • Texturing of plastic surfaces
  • Coating removal from composites and plastics
  • Mould cleaning
  • Surface etching for material bonding

Electronics

  • Epoxy resin removal
  • Glass etching and frosting
  • Decorative or functional etching
  • Ceramics
  • Etching or removal of imperfections
  • Wood Ageing or distressing wood

Specifications;

  • External dimensions 1550 x 1500 x 1755 mm
  • Blast pot: m-2040 / Sn-TK 100009 / ext - 1100 x 810 x 960 mm
  • Dust ext: / sn-S08018 / ext-950 x 820 x 1772mm
  • Internal usable dimensions 1250 x 1000 x 1000 mm
  • Air consumption ( Range with a 7mm nozzle) 20-40 cfm

pdf icon Print / Download Hodge Clemco Enviroclean IND1250 Twin Reciprocating Gun Abrasive Blasting Machine Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
