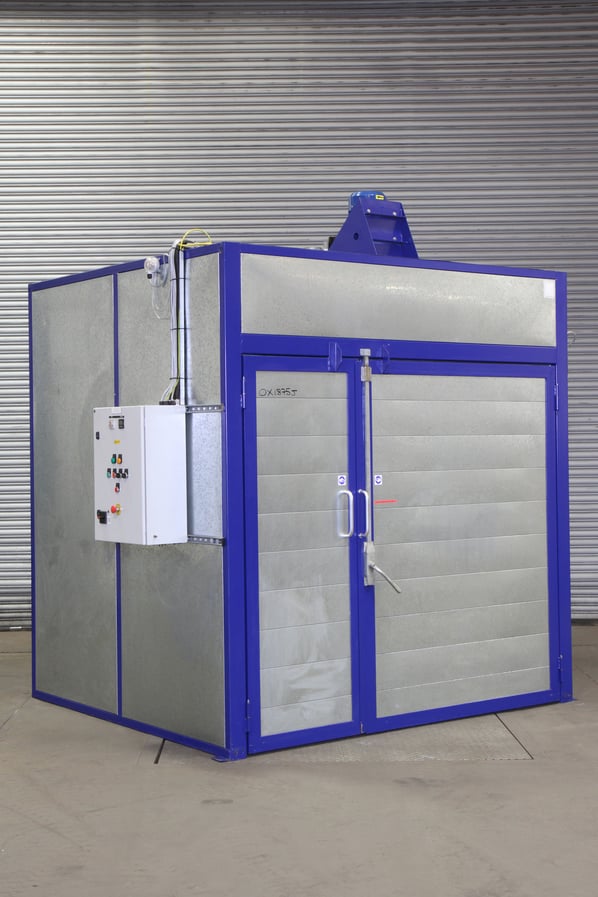

Airtech 2m Cubed Electric Box Oven

Stock No
OX1875J
Manufacturer
Airtech
Model
2m
Year of Manufacture
2009
Serial
2302515
New or Used
Used (Second Hand)
Internal Size (WxDxH mm)
2000 x 2000 x 2000mm
Max Temp
225°C
Other Info
As New, Un-used
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm)
2850 X 2400 X 3050

Description

* * * * * * Coming Soon * * * * * *
This machine is passing through our Goods In verification process.
More technical details and photos will be available soon.
The oven on offer was modified during manufacture to include:
Different width doors (70/30) left door shorter than right
Vent from top of oven and right hand side looking down
Interlocks to shut off heating fan when doors are open
Fan powered bleed off to assist with the removal of water
LEV interlock to be fitted as part of the emergency stop in standard panel

These photographs are representative only.

Please call Sue on 01922 45 8000 to book an appointment to view
* * * * * * Due in stock W/B 2nd July. * * * * * *

The Airtech range of electric ovens are constructed from a heavy duty steel box sectioned frame with infilled 100mm thick insulated galvanised panels offering a sturdy and durable oven.

The design means that the oven can be transported and sited in one piece without the need for any on site assembly.

Our ovens include the following standard features:

- Double loading doors with positive locking, inner emergency escape handle and a unique no maintainance stainless steel door seal.

- Split load 45kW electric heater bank for fast heat up times whatever the load.

- Roof mounted air circulation fan with positional hot air return vents for uniform heat distribution.

- Safety air recirculation flow monitor and alarm that will shut the oven down in the event of fan failure.

- L/H side mounted control panel with Omron dual display digital temperature controller, overtemp
policeman and a process timer which activates when the selected process temperature is reached.

- Secondary resetable policeman mounted directly in the heater bank

- 60-40% Split load heating with PID modulation through an SSR relay. The ovens will ramp at full power until within 20°C of the set point then switch to the PID modulation through the SSR to accurately and cost effectively maintain the temperature and avoid ramping overshoot.

- Bleed extraction duct allowing the removal of volatiles or moisture whilst drying

Typical applications may include;

-Curing water and varnishes and inks
-Curing resins, rubbers and composites
-Processing plastics, curing PTFE
-Electroplating de embrittlement
-Bonding
- Drying applications
-Thermal testing etc

General Specifications 2m3:

- Internal Dimensions – 2000 x 2000 x 2000mm high
- External Dimensions - 2740 x 2200 x 3000mm high
- Maximum process temperature – 225°C
- Doors – 2
- Power rating 45kW
- Heat up Time to 200°C (empty) = approx 20mins
- Tolerance Better than + - 10%
- Acheivable tolerance 5%

pdf icon Print / Download Airtech 2m Cubed Electric Box Oven Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
