Machines & equipment for sale

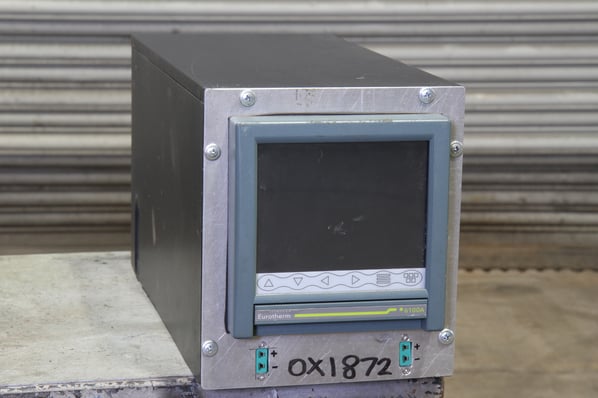

Eurotherm 6100A Data Logger

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Excellent Condition, Current Model
Stock No
OX1872
Model
6100A
New or Used
Used (Second Hand)
Internal Size (WxDxH mm)
N/A
Max Temp
N/A
Other Info
Powerful processing capabilities
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
3 kg
External Dimensions (WxDxH mm)
5.5” 1/4 VGA Display

Description

The 6000 Series offer world leading input accuracy with a 125ms total sample rate for up to 48 input channels. Input channels are freely configurable to suit your process requirements. Each instrument has an intuitive, touch screen display to enable operators to clearly view process data in varying formats. All have onboard Flash data storage capability, Ethernet communication and a choice of removable media. Data is stored in a tamper-resistant binary format that can be used for long term records of your process. The 6000 Series is truly designed for today's networked world and can be accessed via a Local Area Network, dial-up connection, Intranet or Internet.

 Features

  • Secure data recording
  • Full color, high resolution, touch screen display
  • Up to 48 universal input channels
  • Batch functionality
  • Remote viewing and configuration
  • Full audit trail
  • USB "Plug & Play"
  • Local printing
  • 12.1" XGA touchscreen display
  • Custom graphic displays
  • Remote viewing / configuration
  • Batch functions
  • Adaptive recording
  • Math functions
  • Totalizers, timers, counters
  • Groups
  • Time synchronisation (SNTP)
  • Audit trail
  • Electronic signatures
  • Security Manager
  • FTP client/server
  • Ethernet communications
  • Serial communications
  • Event inputs
  • Email / SMS notification
  • Web server

The 6100A offers unrivalled input accuracy with a 125ms total sample rate for up to 48 input channels. Input channels are freely configurable to suit your process requirements. Each instrument has an intuitive, touch screen display to enable operators to clearly view process data in varying formats.

All have onboard Flash data storage capability, Ethernet communication and choice of Compact Flash or SD Card. Data is stored in a tamper resistant binary format that can be used for secure, long term records of your process.

The 6000 Series fits a wide spectrum of applications by offering fully featured software options and flexible I/O, which can be added to at any time. A unique ‘trial mode’ feature removes the constraints of the purchased options, allowing you to simply ‘try before you buy’.

Touch screen display

The 6000 Series HMI is easy and intuitive to use ensuring faster productivity and minimal learning requirements. It also incorporates a ‘Pop Up’ full ‘QWERTY’ keyboard to facilitate easy data or message entry. There are no complicated button presses, you can create your own operator buttons, anywhere on the display. Use of intuitive drop down menus aid consistent navigation.

Extensive communications

Communications flexibility is the cornerstone of solutions in today’s challenging Global market.  The 6000 Series can be accessed via a Local Area Network, dial-up connection, Intranet or Internet.

Built-in data protection and traceability

Your most valuable asset is the data collected for process and legislation purposes. Protection includes Audit Trail for 21CFR Part 11 and Nadcap applications, with recorded login, use of unique usernames and passwords.

Other options include: Portable versions

To be sold with a NEW test certificate

Ideal for:

  • 21 CFR Part 11 Life Sciences applications
  • AMS2750E Heat Treatment applications
  • Power generation
  • Water / waste water
  • Sterilizers / autoclaves

Features:

AMS2750EYes
AnnotationYes
Auditor FeaturesYes
BatchYes
CommunicationsModbus TCP/RTU Master & Slave, EtherNet/IP Server
Contact InputsYes
CountersYes
Custom ScreensYes
Ethernet/FTPYes
Graphic Display6100A: 5.5" / 6180A: 12.1"
Groups12
Inputs6100A: 18 / 6180A: 48
MathematicsYes
Network AddressingDHCP, Boot P, Fixed IP
PC ConfigurationYes
ProtectionIP66
Recording Speed8Hz
Relay OutputsYes
Remote ViewingYes
Reports10
Review of History (on screen)Yes
TotalisersYes
Trend Speed8Hz
USB6100A: 3 USB / 6180A: 1 USB

pdf icon Print / Download Eurotherm 6100A Data Logger Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
