Guyson International / CM Modena L50 Belt Tumble Shot Blast Machine

Special Offer

Refurbished Price [?]
£ 14,450 (+ VAT)
Special Price (sold as seen) [?]
£ 6,950 (+ VAT). Available for immediate collection.
Special offer ends
06 September 2018 15:00 GMT while stocks last
Condition
From a working environment, Good Condition, Current Model
Stock No
SX821
Manufacturer
Guyson International
Model
L 50
Year of Manufacture
1982
Serial
2360
Work Envelope (WxDxH mm)
Ø 422 (mm) x 520 L (mm)
Work Handling Method
Semi Automatic
Other Info
Small but industrious machine
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
1000 kg
External Dimensions (WxDxH mm)
1560 x 1530 x 2720

Description

This second hand CM / Guyson L 50 Tumblast machine is particularly suitable for the shotblasting of small parts
loaded in bulk.

A special anti-abrasive rubber belt arranged as a cradle receives the pieces to be treated and with its rotating
movement maintains them in a constant tumble exposing all facets of the work piece to the blast media stream.

The pieces are hit by the constant jet of abrasive generated by the turbine wheel, and by continuously changing position, they receive the shotblasting treatment uniformly on all the surfaces.

The Tumbleblast L50 model Shot blasting machine can satisfy a range of different needs in blasting, providing excellent results in terms of productivity, safety and energy savings.

Some examples of use for the L 50 Tumbleblast (batch processing) model Shot blasting machine are:

  • Descaling of hot forgings, hot stampings workpieces manufactured in steel or non-ferrous alloy.
  • Descaling of hot-rolled profiles, tubes, plates before painting.
  • Finishing of cast light alloy for automotive components
  • Shot-Peening of springs and mechanical elements for fatique life improvement.
  • Removal of refractory (ceramic) material from precision castings, and their deburring after cutting.
  • Cleaning of tools: - after brazing of hard metals or cemented carbide inserts or tips - after heat treatment - before coating.
  • Cleaning of dies for aluminum extrusion industry.
  • Cleaning of moulds for fabrication of glass containers.
  • Cleaning of dies used for permanent low pressure and gravity die casting of light alloy components (automotive, furniture parts, etc.).
  • Cleaning, reconditioning of parts of automotive such as: brakes, clutches, shock absorbers, steering knuckles, ball joints, etc.
  • Mechanical artificial ageing for aesthetic purposes natural stone and resin or cement bond agglomerates.
  • Deflashing of thermoset (sintered, and injection molded) plastics and fiberglass parts.
  • Deburring, finishing of sintered metal (powder metallurgy) components.
  • Deflashing, finishing of high pressure die castings (engine components, ornamental hardware, aircraft and missile components, etc.).
  • Core knockout, cleaning (fettling) of ferrous and non-ferrous sand castings.

Machine Specifications: Model L50

  • Load capacity (kg) 70
  • Working Volume (dm3) 28
  • Blast mill dimensions Ø 422 (mm) x 520 L (mm)
  • STAStandard belt hole size 7mm
  • 420v / 3ph / 50Hz /
  • Full load - 7.99A / 3.41kw / 4.62HP

pdf icon Print / Download Guyson International / CM Modena L50 Belt Tumble Shot Blast Machine Datasheet

Additional files

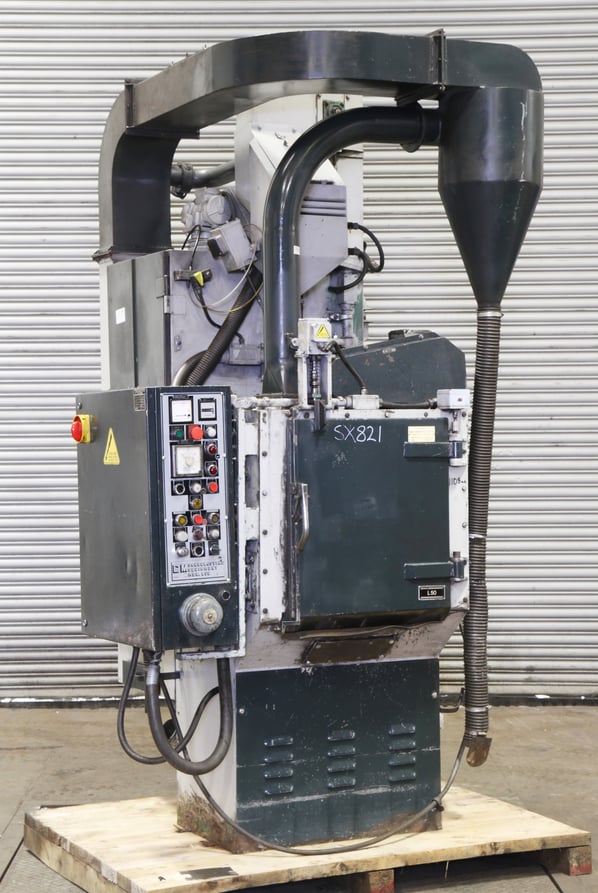

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
