Colchester Triumph Roundhead Gap Bed Lathe

Stock No
WEB245
Manufacturer
Colchester Triumph
Model
Roundhead 15" x 48
New or Used
Used (Second Hand)
Process Application
Metal turning lathe
Other Info
380 mm Over bed
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm)
2350 x 1300 x 1300

Description

Colchester Triumph  Roundhead 15" x 50" gap bed lathe with 2" spindle bore.

equipped with:

  • 16 speeds 30 - 1200 rpm
  • Tool holders
  • 3 & 4 jaw chucks
  • Coolant pump
  • Running centres
  • 3 point steady
  • Splash guard

    Machine Specifications

    Turning Diameter Over Bed (mm)380mm
    Turning Diameter Over Slide (mm)240mm
    Max. Swing-Dia. In Gap (mm)580mm
    Center Distance (mm)190mm
    Main Drive Power (KW/V/Hz)415v
    Spindle Bore (mm)54mm
    Length Of Gap155mm in front of faceplate
    Turning Length (mm)1270 between centres
    Number Of Slides2
    Spindle Turning Speed Range30 - 1200 rpm
    Feeds - LongitudinalYes
    Feeds - CrossYes



pdf icon Print / Download Colchester Triumph Roundhead Gap Bed Lathe Datasheet

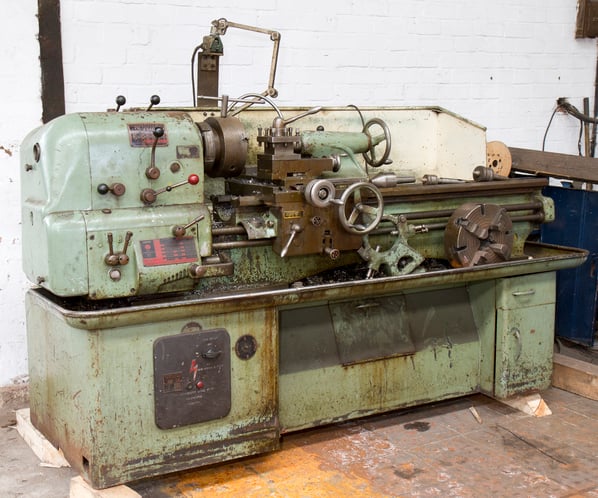

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
