Machines & equipment for sale

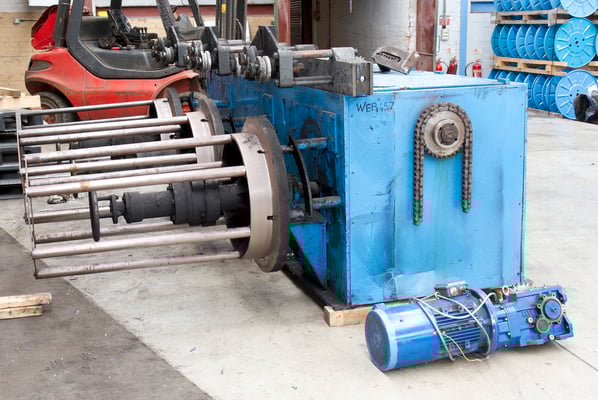

Wean & Vaughn 3 Spindle Capstan Wire Coiling Bench

Direct From Site Clearance

Direct Site Clearance Price [?]
£ 1,000 (+ VAT)
Clearance ends
31 January 2019 17:00 GMT while stocks last
Buyer's Premium [?]
10% BP will be added to your invoice
Part of a Direct Site Clearance
Webster & Horsfall
Condition
From a working environment
Location
Birmingham, UK
Stock No
WEB457
New or Used
Used (Second Hand)
Capacity
500 kg per spindle
Process Application
Wire & rope coiling
Location
Birmingham, UK
External Dimensions (WxDxH mm)
3100 x 2350 x 1400

Description

Wean & Vaughn Capstan coiling bench suitable for any company concerned with the distribution, manufacture and users of cable, wire rope, flexible hose and other similar reel form materials.

The unique design enables a single operator to handle up to 3 x 500 kg drums with ease and efficiency. Because the shaft is only supported at one end the other end is free for loading and unloading.

A linear traversing device is fitted allowing the operator to layer the cable neatly, giving an accurate cut and professional appearance to dispatch drums and coils.

A collapsible coiling head is also equipped with an adjustable slip clutch for tension control.. These enable the machine to produce bound coils thus alleviating the need for a drum.

Automatic cam actuated cable layering is also included to allow the machine to operate unattended and give a neat appearance to dispatch drums.

Winder dimensions: Ø 800 (550A/F) 1050 mm long.

pdf icon Print / Download Wean & Vaughn 3 Spindle Capstan Wire Coiling Bench Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
