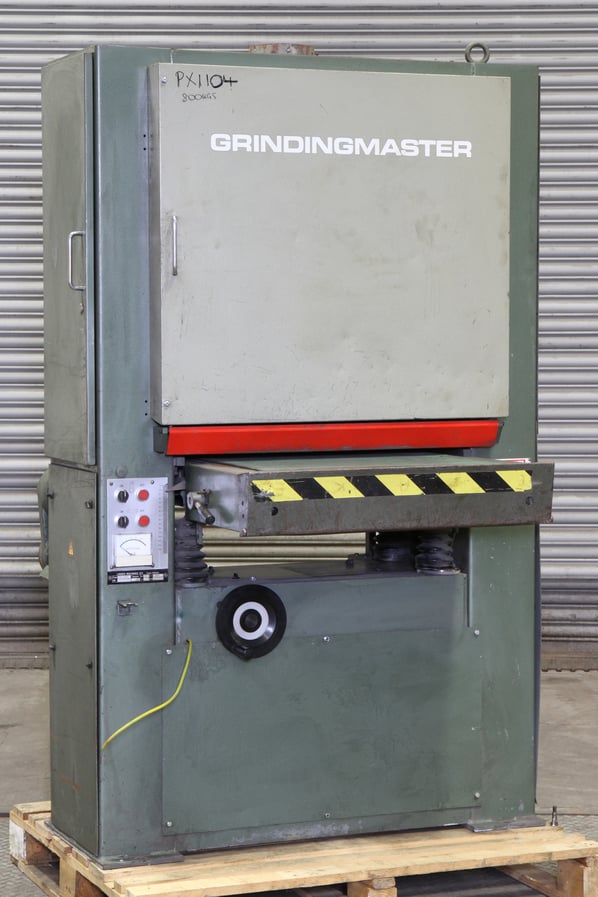

Grindingmaster MCSB600 Wide Belt Grinder

Stock No
PX1104
Manufacturer
Grindingmaster
Model
MSB - 600
Serial
KA729.05
New or Used
Used (Second Hand)
R.P.M.
Dual Speed
Hp/Kw
11 Kw
Other Info
heavy Duty Industrial Machine
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
800
External Dimensions (WxDxH mm)
1200 x 1050 x 1900

Description

This pre-owned Ellesco Grindingmaster is a premier industrial metal working finishing machine.

The MCSB 600 is a 600mm wide belt dry working Grindingmaster that is equipped with a powerful 11kw motor allowing it to process the toughest and heaviest jobs around.

The Grindingmaster is the first and still the best metal processing linisher on the market, used to deburr and finish sheet metal parts. A small footprint and a minimum power requirement allows this model to easily be placed where the need is greatest.

Simple operation and controls require only minutes of training for an operator to effectively produce finished metal parts.

Typical process applications covered by this machine:

  • Stock removal of multiple individual parts and singular sheet materials
  • Precise sizing and finishing of parts and sheet materials
  • Deburring and ende radiusing of punched, nibbled, sheared or laser-cut sheet metal parts.
  • Calibrating or keying carbon, rubber, wood or other soft materials.

Standard features include:

  • Centralised operator control panel.
  • Full 600mm working width
  • Wide belt head with fine adjustments of contact roll, 150mm overall clearance.
  • Conveyor bed on 4 heavy duty precision spindles,
  • 4 x ridged, precision made, rubber coated, workpiece hold down rolls.
  • Single point thickness setting.
  • Grinding belt reversing switch.
  • Scaled thickness read-out.
  • Manual conveyor reverse for set-up.
  • 3-9m/min Manual variable speed table drive.
  • Dust extraction funnel
  • Load amp indicator
  • Auto belt oscillation and tracking
  • Front edge safety bump E stop
  • Adjustable pneumatic tensioning
  • Air actuated disc braking


Available to purchase separately from our dust control section, you will be able to find a suitable dust control plant to match your particular process application whether it be wet or dry.

pdf icon Print / Download Grindingmaster MCSB600 Wide Belt Grinder Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
