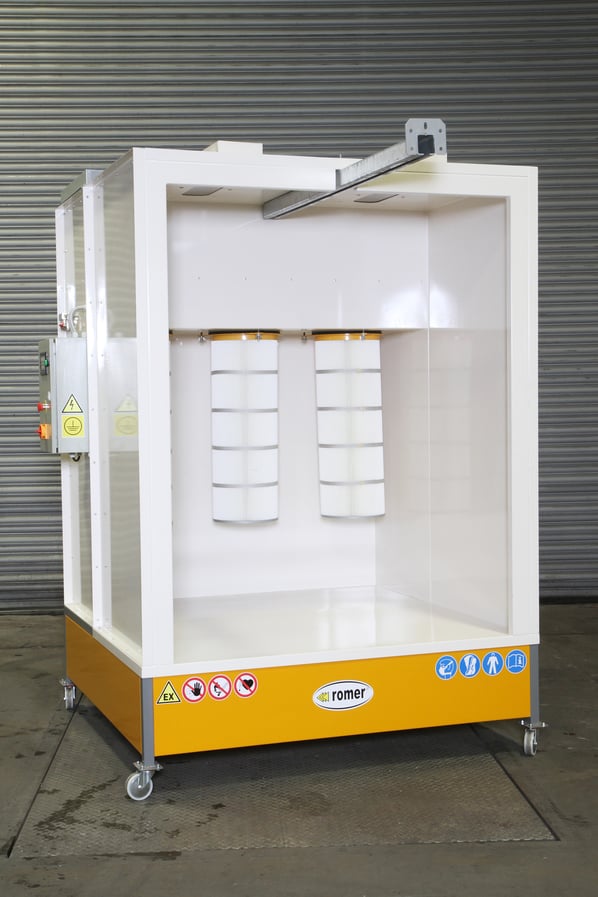

Romer KPZ-3 Powder Coating Spray Booth

Stock No
GX083
Manufacturer
Romer
Model
KPZ-3
Year of Manufacture
2018
New or Used
New
Work Envelope (WxDxH mm)
1600 x 1000 x 1800
Process Stages
1
External Dimensions (WxDxH mm)
1850 x 1600 x 2300

Description

The Romer range of closed spray booth's allow for the application of painting multiple components by hand directly placed on the work table or suspended from the trolley rail.

Features of the KPZ range of manual booths

Explosion-proof construction

These  booths are carefully designed to prevent explosive mixes from the process of powder application. Every single component is carefully selected to minimise the risk of fire.

Romer HMI Panel

The latest booths have now been equipped with a touch screen multilingual HMI panel allowing the parameters of operation and filter cleaning to be easily set and adjusted by the operator

Fire eye detection (optional not fitted)

The booths in this range can be ordered equipped with fire detection eye. Thanks to these sensors installed in the booths any unexpected fire can be detected in a fraction of a second and the power supply cut from the booth to prevent propagation of the fire.

Lighting Twin high fluorescent intrinsically safe lights are mounted in the roof to offer high intensity and good colour rendition.

Aluminum fans

Aluminum fans are safer, to use than standard steel fans as they in themselves won't cause sparks to appear within the metal casing . Thanks to their low weight they also consume less energy and thus less costs. They are also very quiet working at a noise level of 74-dBa, with the motor being hidden inside the booth housing making the booth even lower in height.

Sealed filter installation

Thanks to the use of supporting flanges installing and uninstalling of the filter elements is made easy. The design of the filter with multiple securing locations provides a tight seal which improves the quality of the filtration process and face velocities within the booth.

Automatic filter cleansing

ROMER's booths are equipped with an electronic automatic filter pulse cleaning system. The booths control system has an adjustable timer for both the cleaning interval, and the time of the impulse, so that the filters are automatically cleaned whilst in use to maintain the extraction rate of the booth in an optimum condition.

We know from experience that it's hard to expect an operator to regularly clean the filters, but thanks to this system the operator won't have to worry about it anymore.

Reverse pulse cleaning

The Romer powder booths are equipped with integral pressure reservoirs , which are responsible for the storage of air needed to clean the filter. Compressed air is released from the tank in a fraction of a second while passing through the ROMER JET ™ system which expands the filter at high velocity and escapes through the micro holes in the filter with the powder then falling to the floor booth.

The ROMER JET ™ system is patented and ensures the cleaning of the whole filter from top to bottom, this provides a unique cleaning effect, unattainable in the past using simple Jet venturi's for example

Powder recovery. By recovering the sprayed materials you save money, collecting the powders in the base  allows you to reuse the powders, whether it be directly to storage, the powder can be fed to the spray equipment. (powders should be sifted before using it again)

Without recovery. The powder falls to the floor of the unit which can then be disposed of as required. Particularly suited to operators using multiple colour spraying where the powders would not be reusable.

Filter Elements. The thickness of the material that the filters are made from is 260g/m². Filtration surface area (H900) is 15m² compared to the standard H900 which is only 160g/m² with 7,5m² surface area.

Additional features

The booth is supplied with a compressed air regulator that not only feeds the reverse pulse cleaning, but also the dual quick connection valves for the connection of your powder spraying equipment and blow down gun. Adjacent to the quick connection valves is a blowdown valve to assist in the removal of any moisture that may accumulate within the on-board pressure vessel.

ModelKPZ-3
Worksize dimensionsW1600 x D1000 x H1800
External dimensionsW1850 x D1600 x H2300
Filters 3 pcs.
Nominal power1.38kW
Nominal voltage380 - 415V
Noise74dBa
Air volume10,200m3/h

pdf icon Print / Download Romer KPZ-3 Powder Coating Spray Booth Datasheet
