Machines & equipment for sale

Kilns and Furnaces SPMF/LA 1200C Box Furnace

Special Offer

Refurbished Price [?]
£ 2,950 (+ VAT)
Special Price
£ 2,750 (+ VAT)
Special Price (sold as seen) [?]
£ 1,200 (+ VAT). Available for immediate collection.
Special offer ends
13 December 2018 15:00 GMT while stocks last
Condition
Good Condition
Stock No
OX1852
Manufacturer
Kilns and Furnaces
Model
SPRF/L
Serial
05479
Internal Size (WxDxH mm)
320 x 1070 x 140
Max Temp
1200
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm)
940 x 1750 x 1800

Description

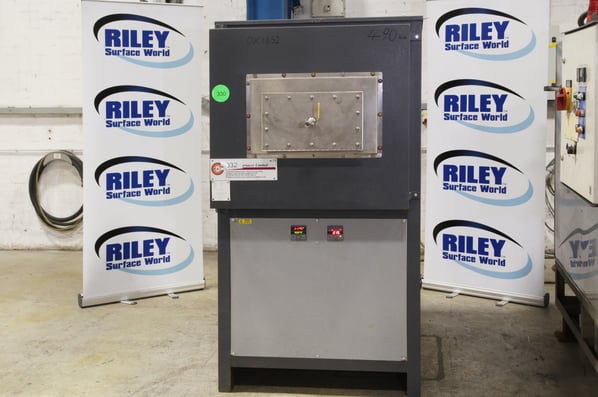

This Kilns and Furnaces SPRF/L  furnace offers a reduced capacity load, providing thermal stability and uniformity over the heat treatment process combined with robust construction required for general workshop use

Free radiating coiled wire elements to 3 sides supported in open grooves, together with low thermal mass insulation, power this furnace to working temperature in approximately 50 minutes, and provide efficient and reliable operation.

Features

  • Front loading for ease of use.
  • 47 litres capacity
  • 21 kW loading 3ph / 415v
  • Maximum design temperature – 1200 °c
  • Freestanding stove enamel paint finish
  • Highly thermally efficient construction
  • High-grade spiral wound elements fitted to the sidewall, door and back
  • Bentrop TC2010 Over temperature protection
  • Bentrop TC2066 Temperature controller

Typical uses of high-temperature furnaces

Metal industry

  • Preheating
  • Tempering
  • Forging
  • Heat Treatment Metals
  • Weld / Metal Coating
  • Stress Relieving
  • Hardening
  • Refining
  • Brazing
  • Wax Burnout
  • Retorts
  • Calcining
  • Ornamental

Ceramics

  • Decoration
  • Biscuit / Glost
  • High Temperature
  • Felspatic Porcelains

pdf icon Print / Download Kilns and Furnaces SPMF/LA 1200C Box Furnace Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
