Machines & equipment for sale

Kilns and Furnaces SPMF/LA 1000C Box Furnace

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Stock No
OX1851
Manufacturer
Kilns and Furnaces
Model
SPMF/LA
Serial
05480
New or Used
Used (Second Hand)
Internal Size (WxDxH mm)
400 x 1000 x 205
Max Temp
1000
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm)
1590 x 1385 x 1870

Description

This Kilns and Furnaces SPMF/LA furnace offers a reduced capacity load, providing thermal stability and uniformity over the heat treatment process combined with robust construction required for general workshop use

Free radiating coiled wire elements to 3 sides supported in open grooves, together with low thermal mass insulation, power this furnace to working temperature in approximately 40 minutes, and provide efficient and reliable operation.

Features

  • Front loading for ease of use.
  • 80 litres capacity
  • 21 kW loading 3ph / 415v
  • Maximum design temperature – 1000 °c
  • Freestanding stove enamel paint finish
  • Highly thermally efficient construction
  • High-grade spiral wound elements fitted to the sidewall, door and back
  • Bentrop TC2010 Over temperature protection
  • Bentrop TC2066 Temperature controller
  • Ventilation cooling port

Typical uses of high-temperature furnaces

Metal industry

  • Preheating
  • Tempering
  • Forging
  • Heat Treatment Metals
  • Weld / Metal Coating
  • Stress Relieving
  • Hardening
  • Refining
  • Brazing
  • Wax Burnout
  • Retorts
  • Calcining
  • Ornamental

Ceramics

  • Decoration
  • Biscuit / Glost
  • High Temperature
  • Felspatic Porcelains

pdf icon Print / Download Kilns and Furnaces SPMF/LA 1000C Box Furnace Datasheet

Additional files

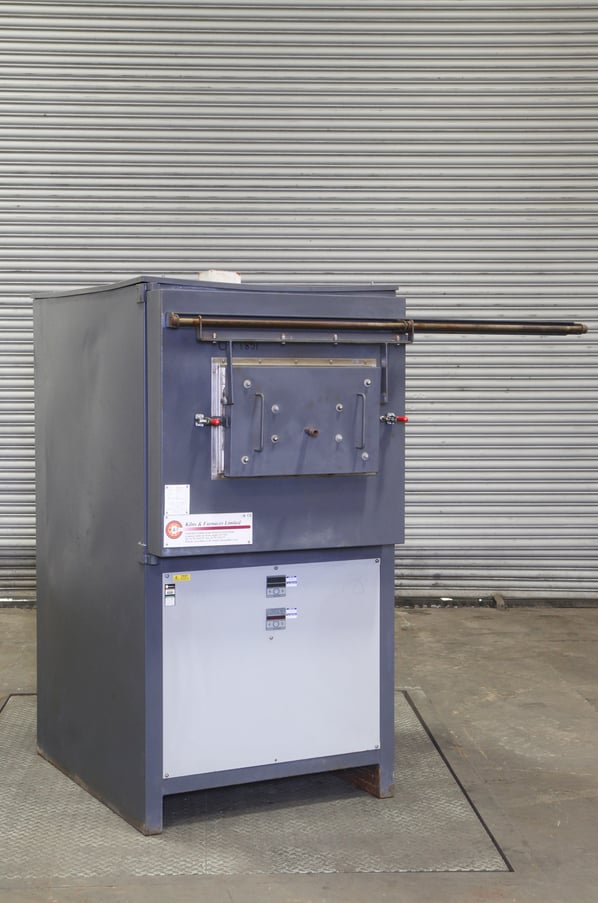

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
