Machines & equipment for sale

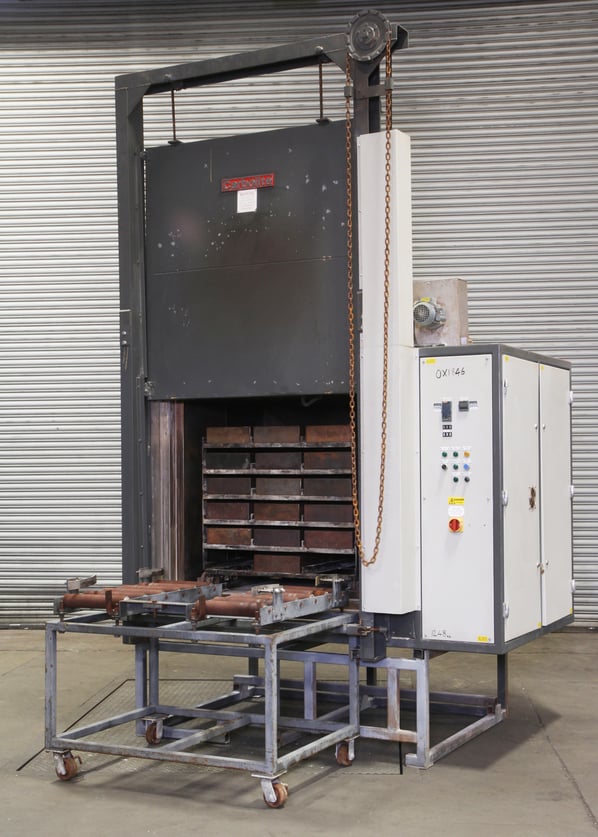

Carbolite LGP 6/830S Oven

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Seen working by RSW, Excellent Condition
Stock No
OX1846
Manufacturer
Carbolite
Model
LGP 6/830S
Serial
6/01/1373
New or Used
Used (Second Hand)
Internal Size (WxDxH mm)
1080 x 900 x 1030
Max Temp
600°C
Other Info
415v/3phase/24kW
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
1248kg
External Dimensions (WxDxH mm)
2060 x 1450 x 3640

Description

The 6/830S large general purpose oven offer an internal volume of 830 litres in size and maximum temperature of 600 °C.

The LGP range is often customised in order to precisely meet the user’s requirements.
Typical examples of which are the more sophisticated control systems and data recording that is required for applications such as AMS 2750E heat treatment under Nadcap, or modifications to handle heavier loads or assist in loading and unloading the oven, or simply larger chamber sizes than are offered in the standard range.

Features

  • 600°C maximum operating temperature
  • 830 litre chamber volume
  • PID digital set and display using the 3216CC controller
  • Large capacity, rugged well proven designs
  • Robust construction, for heavy duty cycles
  • Efficient air circulation and excellent temperature uniformity from heavy duty impeller
  • Corrosion resistant ferritic grade 430 stainless steel interior
  • Steel section & zinc coated, painted mild steel exterior
  • Single vertical powered door
  • Shelf runners
  • low thermal mass insulation for high energy efficiency
  • Fully adjustable chamber ventilation
  • Eurotherm 2408 controller
  • Eurotherm 2216e overtemperature contoller
  • Heater element duty indicators
  • Load/unload conveyor
  • Additional 6x3 tray loading cartride

pdf icon Print / Download Carbolite LGP 6/830S Oven Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
