Machines & equipment for sale

Vixen Surface Treatments AB915 Aqua Blaster

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Good Condition
Stock No
SX818
Manufacturer
Vixen Surface Treatments
Model
AB915
Year of Manufacture
2003
Serial
074
New or Used
Used (Second Hand)
Work Envelope (WxDxH mm)
915 x 720 x 875
Work Handling Method
Manual
Other Info
Stainless Steel Construction
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
260
External Dimensions (WxDxH mm)
1000 x 1180 x 1920

Description

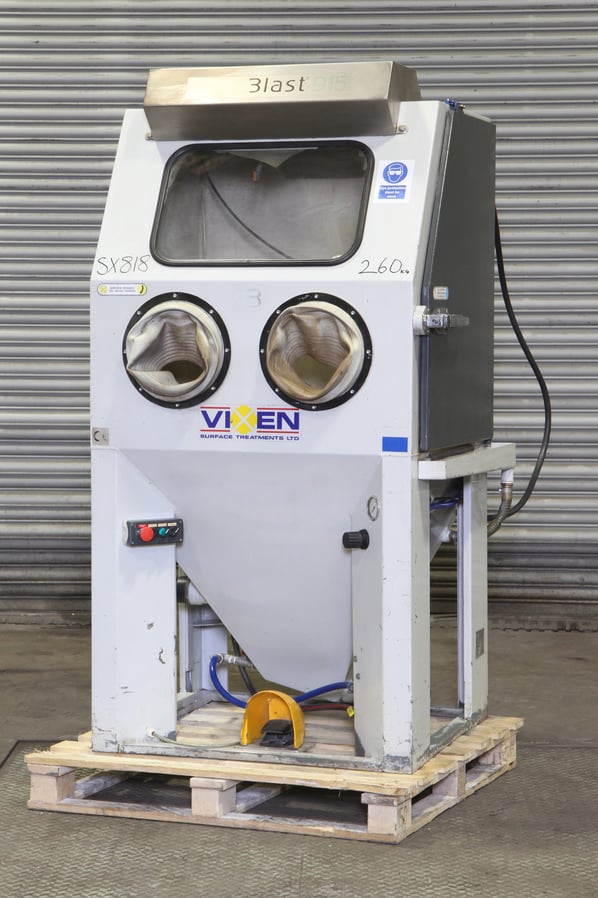

Vixen 915 Aquablast Cabinet

The Aquablast 915 wet blasting machine is designed by vixen to simultaneously degrease and blast multiple components.

The process cleans by flow, and not impact, producing a 'soft' finish. The water acts as a lubricant, avoiding media impregnation and also extending the life of the blast media.

Vixen Aqua blast cabinet used for the cleaning, degreasing and removal of debris from workpieces.

An all stainless steel constructed blast cabinet with an internally submersed glandless polyurethane pump and tungsten carbide tipped blast nozzle.

Typical process is as follows:

  1. The water/media slurry is contained within the wet blasting cabinet sump.
  2. Delivery of the slurry to the manual blast nozzle is via a glandless polyurethane pump and associated hose located inside the wet blasting machine.
  3. Compressed air is added at the blast nozzle to accelerate the slurry and create the cleaning effect.
  4. After contact with the component, the slurry then drains back into the sump creating a re-circulating system.

Includes:

  • Water wash gun
  • Single right hand side door
  • Pressure gauge
  • Internal Light
  • Floor pedal gun actuation
  • 2.2kW media blast pump mounted directly into the sump
  • Tungsten carbide blast nozzle
  • 3kW thermostatically controlled sump water heater for cleaning applications
  • Front viewing window with internal wash/wipe

Service requirements.

  • Electrical supply 415v 3 Phase + Neutral
  • Air supply 7 bar (100psi @ 40cfm)
  • Air operating range 2-6 bar (30-80psi)
  • Water Supply 1/2" BSP
  • Drain Floor Level Approx 10 Litres/min
  • Ventilation 4" / 110mm Duct to outside atmosphere

pdf icon Print / Download Vixen Surface Treatments AB915 Aqua Blaster Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
