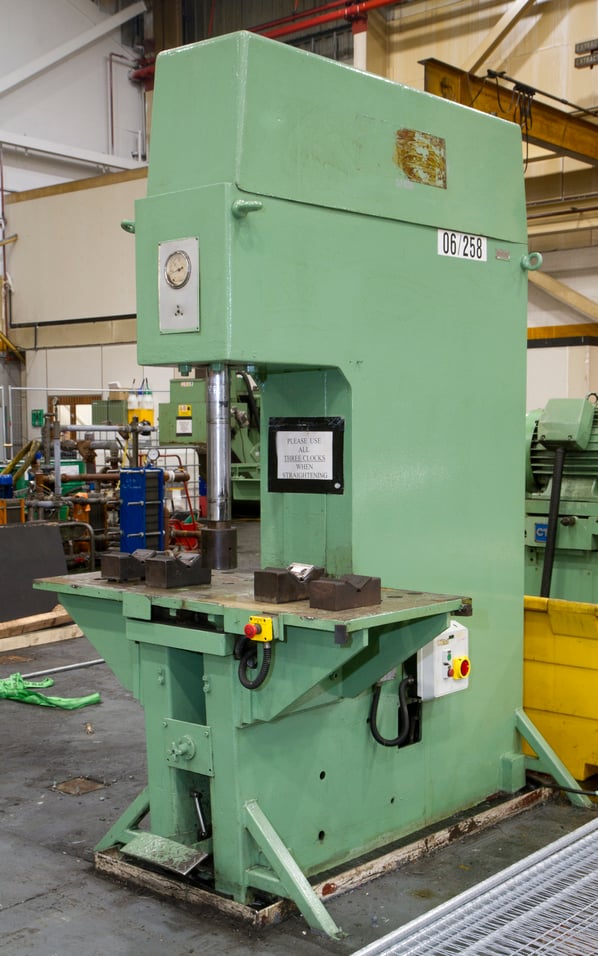

Hannifin "C" Frame 30 T Hydraulic Straightening Press

Stock No
JCB030
New or Used
Used (Second Hand)
Location
Uttoxeter, Staffordshire UK

Description

Hannifin "C" Frame 30 T Hydraulic Straightening Press

This press is suitable for straightening pin parts, profiled bar, pins and shafts. Drawing, bending, pressing, forming and stamping for sheet parts.

Features

1, Vertical C-frame structure for high rigidity;

2, Neat appearance, driving system is inside the frame;

3, Operator foot pedal

4, Pressure can be adjusted within a certain range.

Technical details

Floor standing Bed area:  2.3mH x 1.7mW x 1.2mL (T-floor plan)

Daylight opening (total):  maximum 0.6m

Throat depth:  0.6m

Ram diameter:  No Details

Floor to top of bed:  0.95m

Power unit: Vickers hydraulic pump, electrically driven

Foot pedal operation

Pressure control

Pressure gauge

Overall dimensions approx. 2.3m H x 1.7/0.85m W x 1.2m L (T-floor plan)

pdf icon Print / Download Hannifin "C" Frame 30 T Hydraulic Straightening Press Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
