Machines & equipment for sale

Wheelabrator Ventus 150 PR Pressure system

Special Offer

Refurbished Price [?]
£ 13,750 (+ VAT)
Special Price (sold as seen) [?]
£ 4,950 (+ VAT). Available for immediate collection.
Special offer ends
06 September 2018 15:00 GMT while stocks last
Condition
Current Model
Stock No
SW810
Manufacturer
Wheelabrator
Model
VENTUS 150 PMB
Serial
1133-00-00
Work Envelope (WxDxH mm)
1290 X 1500 X 1040
Work Handling Method
MANUAL
Other Info
DUST EXT 5.5KW
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm)
1800 X 2500 X 2500

Description

Wheelabrator Vacublast Ventus 150 P pressure fed airblast cabinet.

The Vacublast Ventus pressure fed air blast cabinets from Wheelabrator have been designed specifically for production applications where a high work output is required, combined with optimum abrasive blasting quality.

In this standard hand blast cabinet, the blast nozzle is operated manually by the operator through the armholes and can be used with all dry and free running abrasives available on the market today.

The Wheelabrator Ventus 150 P is a large capacity pressure blast cabinet with manual rotary table, separate 30 lite blast generator pressure pot and reclamation cleansing unit.

This used Vacublast pressure fed hand blast cabinet is essential when removing heavy corrosion, tough coatings or when high production rates are required.

Pressure feed machines are commonly used in high production environments or on applications such as peening, surface coatings removal, surface preparation and general cleaning.

Cleaning rates are up to 5 times the speed of a suction venturi cabinets and are suitable for use with a wide range of abrasives such as Steel shot, Aluminium oxide, Glass bead and walnut shell etc.

Blast chamber

The cabinet has 1300 x 1000 mm door fitted to the right hand side of the machine. The doors on this range of machines offers an effective seal to the chamber for a leak free operation.

Complete with a matching Filtex FJ20 reverse pulse dust control plant, for the removal of the dust from the cabinet and provide the power to run the media recovery system.

Additional cabinet features include:

- Internal lighting
- large viewing window
- Large operator armlets
- Large loading door with fitted safety valve.
- 1mtr rotary table
- Simple and safe foot pedal blast control
- 30 liter pressure feed pot with cabinet mounted blasting pressure regulator.

Blast generator and reclamation cleansing unit.

The blast media is drawn through the base hopper and passed through a cyclonic separator were the amount of waste separation can be controlled by the setting of the air wash eductor. The air wash is set to retain the reusable media and reject the undersized and waste dust to the dust collector.

The reusable media passes from the cyclone separator over a full width magnetic separator before dropping onto a vibrating debris screen which removes any over sized particles and debris from the process.

Located at the bottom of the storage hopper is the 30l pressure vessel which stores the blast media ready for use. The pot has a media capacity of 100kg steel or 50kg oxide.

Typical Media Capacities

Blast cabinet footprint of WxDxH - 1600 x 1600 x 1950mm

Cyclone - 1100 x 1100 x 2700mm // 325kgs
Dust extractor - 1300 x 950 x 2850mm // 355kgs

pdf icon Print / Download Wheelabrator Ventus 150 PR Pressure system Datasheet

Additional files

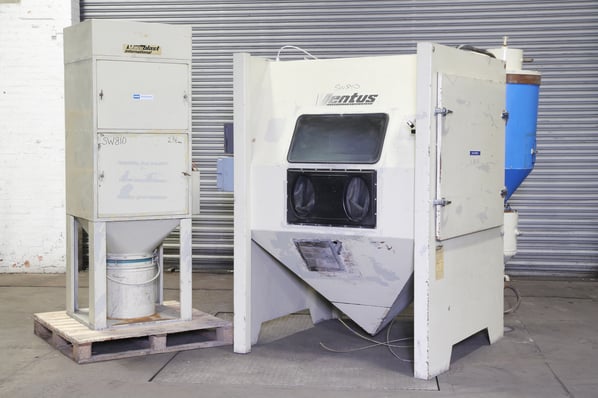

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
