Plasticraft Hard Chrome Plating Line

Direct From Site Clearance

Price [?]
Please call on +44 (0) 1922 45 8000
Decommissioning,
Moving & Loading Fee [?]
£ 75,000 (+ VAT) will be added to your invoice
Part of a Direct Site Clearance
JCB Hydraulic Bar, Hard Chrome Electroplating and Finishing Cell
Stock No
JCB090
Manufacturer
Plasticraft
Model
Automatic Hard Chrome Plating Line
Year of Manufacture
2003/2004
New or Used
Used (Second Hand)
Work Envelope (WxDxH mm)
6700 x 700 x 1400
Process Stages
12 plus Auto Load and Unload
Other Info
Crane Care Ltd. 4000KG SWL transporter
Location
Our Central Warehouse, Aldridge, UK

Description

Plasticraft Hard Chrome Plating Line

Model - Automatic Hard Chrome Plating Line

Serial Number - Plasticraft Job No 1799/8/M P1501/01

Year of Manufacture - 2003/2004

Process Tanks -6700 mm wide x 660 mm long x 1340/1370 mm sloping depth

Process Stages - 12 plus Auto Load and Unload

Other Info - 4000 KG SWL transporter

Lift Speed 5 to 10 m/min variable (inverter controlled)

Traverse Speed 3 to 40 m/min variable (inverter controlled)

Approximate Overall Dimensions of Plant:

(includes most ancilliary equipment, excludes track overhang, air blast chillers and exhaust stacks)

Length 17000 mm load table to unload table

Width 15000 mm

Height 4000 mm

The following major items are included: -

  • Process Tanks and Fittings
  • Gas and Electric Heating Equipment
  • Cooling Equipment including Air Blast Cooling
  • Agitation Blower for rinse water agitation.
  • Eductor System for process solution agitation.
  • Shower and Eye Wash Unit
  • Transporter
  • Transporter Steel work, Track and Infra-Red/Wire Mesh Guarding
  • Load/Unload Station framework with raise/lower mechanism
  • Carrier Bars and jigs

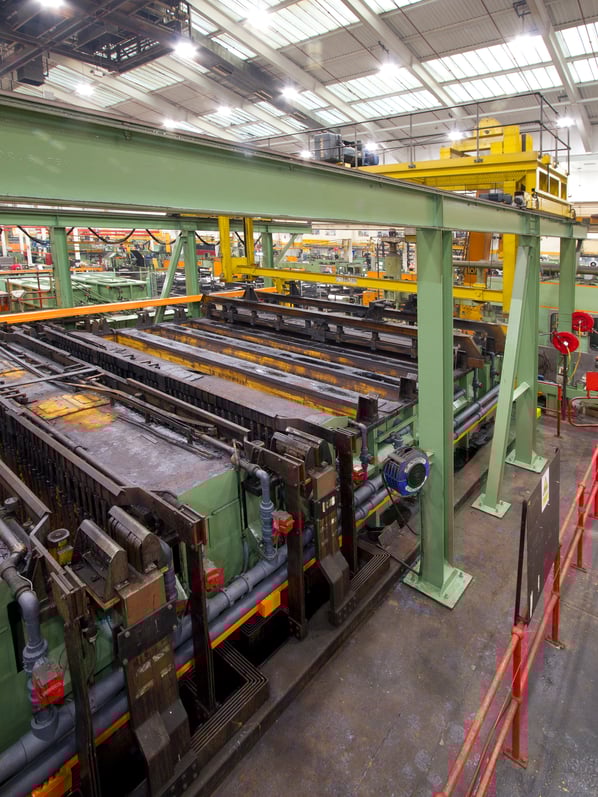

 Plasticraft premium quality automatic hard chrome plating line with 4 T SWL transporter, five flight bars, automatic load and unload, Allen Bradley plc control.

Station

Tank

Process

1

-----

Auto Load

2

1

Bio-clean

3

2

Rinse

4

3

Rinse

5

4

Rinse

6

5

Reverse Etch and Chrome Plate

7

6

Reverse Etch and Chrome Plate

8

7

Reverse Etch and Chrome Plate

9

8

Rinse

10

9

Rinse

11

10

Rinse

12

11

Rinse

13

12

Hot Rinse

14

---

Auto Unload



Plant generally comprises:

  • 21 metres overall of very heavy duty gantry system and 12 tanks. Premium quality construction, design and build. Automatic solution level control and chemical dosing system, automatic process temperature control, automatic rectifier control. Auto load unload with heavy duty jacking systems.

Including:

  • 3 off 24000Amp x 0- 15VDC ASL rectifiers with reverse etch facility
  • 3 sets heavy duty DC connections and interconnecting bus bar systems to plating tanks.
  • 2 off 30KW air blast coolers for process temperature control of 3 chrome plating tanks each containing approximately 5000 litres of plating solution complete with circulation pumps.
  • 12 off heavy duty steel tanks including 2 off with thermal insulation and gas heating via Lane mark burner tube system.
  • 3 off titanium lined Hard Chrome Plating Tanks complete with anode rails, lead anodes, 24000 amp DC flight bar location brackets, electric heating, titanium cooling panels, twin eductor pumps, auto dosing, level control and fume extraction.
  • 1 off stainless steel Bio-clean tank, thermally insulated, operating temperature 55⁰C, gas burner tube heating, twin eductor pumps, auto dosing, level control and fume extraction.
  • 1 off stainless steel Hot Rinse tank, thermally insulated, operating temperature 85⁰C, gas burner tube heating, twin eductor pumps, level control and fume extraction.
  • 7 off water rinse tanks with air agitation and feed/drain pipework.
  • 2 off hard chrome extraction systems, each complete with 22 kW centrifugal fan, horizontal fume washer/mist eliminator, 20 metres approx. of interconnecting ductwork and discharge to atmosphere via 16 metre high vertical exhaust stacks.
  • 1 off Bio-clean extraction system, complete with 7.5 kW centrifugal fan, 7 metres approx. of interconnecting duct work and discharge to atmosphere via 16 metre high vertical exhaust stack.
  • 1 off Allen Bradley plc control system with touch screen MMI, to monitor/control transporter movements, tank temperatures, tank levels, forward and reverse DC currents, process times, dosing pumps, eductor pumps, heating and cooling systems and fume extraction systems.
  • 2 off enclosed waste process solution holding tanks (one for Bio-clean and one for Chrome) complete with air driven PVDF transfer pumps, access manways and tanker connections. Dimensions 3.5m x 1.2m x 2m high operating volume 7000 litres.
  • Five flight bars to accommodate variable component bar lengths, up to 8 component bars per flight bar with work location design to facilitate automatic loading and unloading of plated bar from pre and post treatment machines.
  • Heavy duty freestanding twin track gantry system with 4000KG SWL transporter fitted with access and maintenance platforms.
  • Automatic flight bar jacking systems at the load and unload stations for height adjustment to allow transfer of components to and from the pre and post treatment machines onto the flight bars.
  • 1 set plant access and maintenance walkways.

Professional decommissioning, chemical removal, cleaning, neutralising, dismantling, move and load to suitable transport

In order to ensure the plating line equipment is disassembled in a controlled manner which renders it suitable for future reuse it is a JCB prerequisite that Riley Industries carry out the decommissioning and removal work. The successful plant purchaser will contribute towards the cost of the plant removal set at a level of less than 25% of the total cost.

Riley Industries will take the role of Principle Contractor for the purposes of the project and the overall coordination of the works with JCB.

The work is within a live manufacturing environment and must not cause interference with production operations so Riley Industries will provide experienced site supervision during the execution of the works through the services of Will Green FIMF of Plating-Line-Advice. Will Green has more than 40 years experience of supplying and putting to work major plating line installations worldwide, for background information please visit www.plating-line-advice.com,

Riley Industries will provide an experienced specialist plating plant electrical and mechanical engineering team to carry out controlled plant disassembly suitable for future reassembly through the services of Jacquet Weston Engineering (www.jweltd.com)

Riley industries will provide an experienced specialist confined space entry chemical cleaning team to carry out cleaning of the equipment as it is disassembled to remove residual chemical contamination in liquid and encrusted solid form. It is envisaged that some surface staining will remain due to the nature of the chemistry and the 14 year service life exposure.

These professional services will ensure the safe and managed removal of the plating line for reuse, meeting JCB's high standards in a high volume manufacturing facility.



pdf icon Print / Download Plasticraft Hard Chrome Plating Line Datasheet

Additional files

Output

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
