Machines & equipment for sale

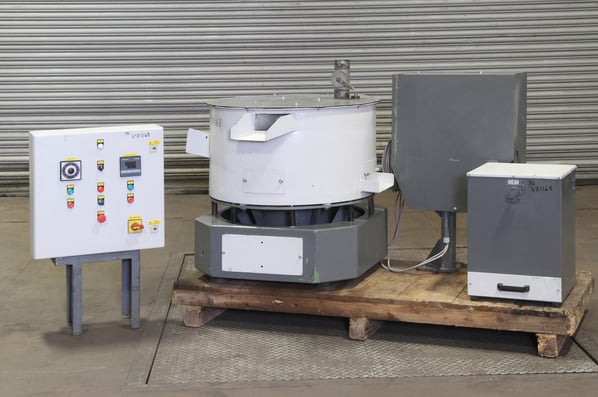

Rosler R 185 DW Vibratory Hot Air Dryer

Special Offer

Refurbished Price [?]
£ 2,950 (+ VAT)
Special Price
£ 2,725 (+ VAT)
Special offer ends
06 September 2018 15:00 GMT while stocks last
Stock No
VX1168
Manufacturer
Rosler
Model
RT 180 DW
Year of Manufacture
1996
Serial
14994/96-08
Capacity
180l
Type
Hot air dryer
Other Info
As NEW Condition
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
420
External Dimensions (WxDxH mm)
1030 x 1030 x 940

Description

The Rosler RT range of machines are normally used for drying components after the vibratory finishing process (although suitable for drying components after any wet process)

The rotary dryer is filled with drying media, the wet components are loaded into the machine continuously, or in batch via the loading chute, the wet components travel automatically through the pre-heated drying media around the process chamber and are then separated on a separation screen.

The system is complete with a forced hot air dryer system and dust extraction.

The benefits of the hot air dryer system is that it can also be used when either part on part processing or when you have components whereby maize media may become entrapped.

The dryer will operate without any drying/polishing media and still effectively dry the components with hot air alone.

In addition to the stain free drying whilst using media you have the additional advantage of polishing the components, resulting in a high quality appearance of the finished components.

Technical Details

  • 415V 50Hz 1.6/2.3A
  • Extractor size 420 x 650 x 600
  • Heater size 340 x 660 x 1030
  • Bowl Ø - 860mm
  • Channel - 200 mm width

pdf icon Print / Download Rosler R 185 DW Vibratory Hot Air Dryer Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
