Nederman Airmaster 75E Twin 7.5kw Dust Extractor

Stock No
EW1611
Manufacturer
Nederman
Model
75E
Serial
93151650
New or Used
Used (Second Hand)
Approx Duty CFM / M³/Hr
6000 // 10200
Filter Area ft² / m²
750 // 75
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm)
3410 x 1530 x 2730

Description

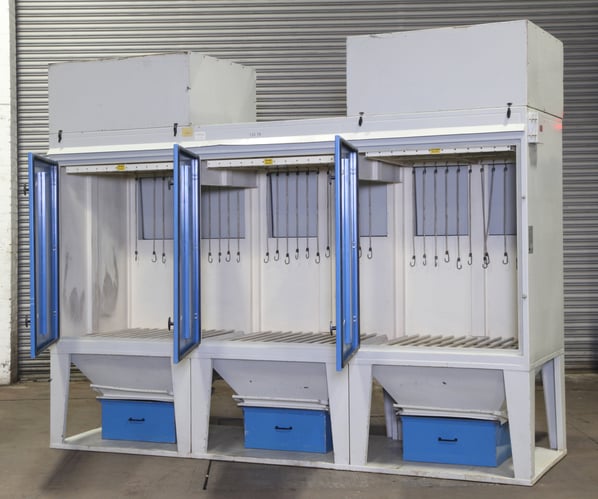

Nederman 75 E baghouse dust collector with shaker cleaning mechanism

75 E baghouse dust collector

Suitable for various applications that generate light to medium volumes of dry dust

 The Nederman E series is a robust simple mechanically cleaned baghouse dust collector suitable for non-continuous duty for industrial, commercial and educational locations.  The dust collector is neat, compact, unobtrusive and is easy to clean. The  exterior has a robust weatherproof welded steel construction and is suitable for outdoor siting..

This second hand unit is powered by twin 7.5 kW fans allowing the duty of the extractor to be adjusted as the process generating the dusts varies or when used on differing process points as and when required.

Designed primarily for intermittent use.

Dust Collectors that use motorised shaker cleaning are used when the application is practical to shut down the dust collector for the cleaning cycle to be achieved. Usually periods such as breaks and dinner times are sufficient to keep the filter bags in an optimum state of effectiveness.

During cleaning a timer is activated on shutdown which brings in the motorized shaker mechanism to shake the bags at high speed removing the dust from the bags to the collection bins below.

Features

  • All access for maintenance from the front of the unit
  • Triple dust buckets
  • ATEX rated explosion relief panels
  • Efficient, automatic electric shaker mechanism
  • Weather-proof for positioning outdoors
  • Neat and compact design makes it easy to position

Technical Parameters:

  • Air Volume: 10200 m3/hr (6000 CFM)
  • Maximum working temperature 80ºC
  • Maximum negative pressure 4000 Pa
  • Maximum positive pressure 1500 Pa
  • Filter area 75 m²
  • Wide range of filter materials to suit most applications
  • Twin Integral, high efficiency 7.5kW fans
  • Versatile multiple inlet connections, including QF-type ducting
  • All electrical connections pre-wired to terminal box on unit

Typical applications

  • Metalwork, grinding, fettling, sanding, polishing
  • Woodwork, dust extraction from small and medium workshops
  • Bulk powders, chemicals, sack tipping, weighing, bagging
  • Educational workshops - ceramics, metal work, crafts and woodwork

pdf icon Print / Download Nederman Airmaster 75E Twin 7.5kw Dust Extractor Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
