PDJ Vibratory Trough Finishing Machine.

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Stock No
VW1166
New or Used
Used (Second Hand)
Capacity
855 X 615 X 700
Type
Trough vibratory finishing machine.
Other Info
Includes a full acoustic enclosure
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm)
1200 X 1080 X 1360

Description

The PDJ Vibratory trough is a robust, cost effective and versatile finishing machine.

With the all-purpose trough vibratory mass finishing machine you can process large and or sensitive parts as required with excellent processing result.

The tub vibrator is an “all-round” mass finishing machines that can be used for a broad range of applications from gentle surface conditioning through to grinding and edge radiusing.

Tub vibrators with their rectangular shaped work bowls are ideal for finishing mid sized to large parts. Normally, the parts are placed into the work bowl loose where they freely rotate within the processing media in a cascading motion. Alternatively parts can be set in a fixture to prevent any damage caused by part on part impingement upon each other.

Applications include:

  • General deburring
  • Heavy duty radiusing (edge breaking)
  • Surface smoothing
  • Polishing
  • De-greasing
  • Surface cleaning
  • Pickling, descaling, de-rusting

 The bowls cross sectional profile is u-shaped with straight walls, this provides easy access for the loading of large components and or fixtures across the complete work bowl width maximising the useful available space within the trough.

The induced vibratory energy in the machine is generated with the foot mounted vibratory motor under-slung on the belly of the machine.  This motor generates the out of balance vibratory forces by spinning eccentric weights mounted on the ends of its shaft. These weights can be adjusted to either increase the  decrease these forces to tune the vibratory action to either the material and task in hand.

NOTE Refurbished price to include new lining, sold as seen price "As viewed"

Additional information

  • Supplied with a fully acoustically dampened enclosure and water/waste drop tank.
  • Ext dimensions including acoustic enclosure 1370 X 1450 X 50 mm
  • Electrical supply 415v / 50hz / 10Amp

pdf icon Print / Download PDJ Vibratory Trough Finishing Machine. Datasheet

Additional files

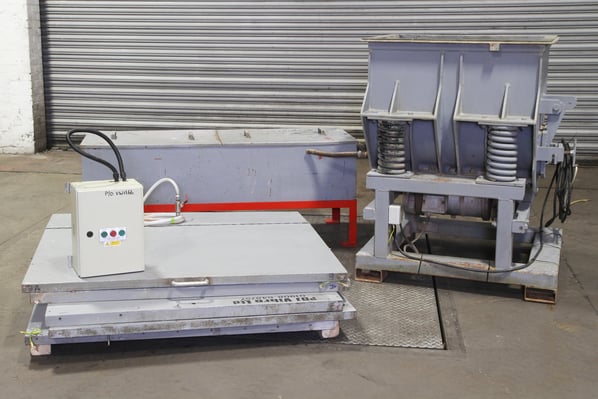

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
