Machines & equipment for sale

Solvent Wash Station

Stock No
Solvent Wash Station
Work Envelope (WxDxH mm)
1060 X 860 X 800
Process Stages
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm)
1260 X 1100 X 1720

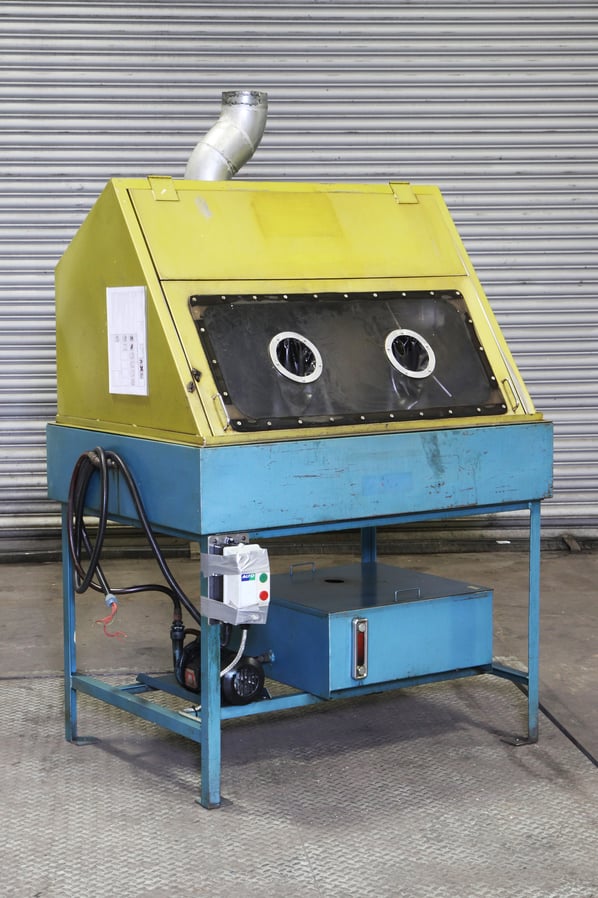

Solvent Wash Station for parts washing with either water based or non flammable solvent - Washing with a pumped spray gun pressure nozzle.

The workstation has a slatted work table and small satellite rotary table with a bottom drain outlet to the wash solution storage tank stored below to simplify cleaning operations.

The workstation is fully enclosed with a front glass window and gloves which are easy to service and place in position. The Vertically opening concertina door allows easy access for loading and Inside is a bulkhead IP rated lighting fitting for clear viewing.


  • All steel construction
  • Vertical concertina door for loading with glass window
  • Separate solution storage tank with level indicator
  • Internal lighting
  • Hanging rail for job suspension
  • Rotary table for easy part manipulation
  • 0.35kW Pump
  • Rear vent to extraction spigot for fume removal.

pdf icon Print / Download Solvent Wash Station Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
