Machines & equipment for sale

Nederman Airmaster Auto M 25 Dust Extractor

Special Offer

Refurbished Price [?]
£ 3,750 (+ VAT)
Special Price (refurbished) [?]
£ 3,475 (+ VAT)
Special Price (sold as seen) [?]
£ 2,250 (+ VAT). Available for immediate collection.
Special offer ends
13 December 2018 15:00 GMT while stocks last
Stock No
EW1601
Manufacturer
Nederman
Model
25M
Serial
93151810
Approx Duty CFM / M³/Hr
1750 // 2975
Filter Area ft² / m²
250 // 25
Other Info
ATEX compliant explosion relief panel
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
566
External Dimensions (WxDxH mm)
1450 X 1140 X 3300

Description

M 25 baghouse dust collector with auto shaker cleaning

Suitable for various applications that generate light to medium volumes of dry dust

 The M series is a robust simple mechanically cleaned bag house dust collector suitable for non-continuous duty for industrial, commercial and educational locations.  The dust collector is neat, compact, unobtrusive and it is easy to clean the exterior and has a robust weatherproof welded steel construction.

This second hand unit is powered by a 4 kW fan

The dust collectors uses motorised shaker cleaning which are used when the the unit is shut down between production times. During cleaning the motorised shaker shakes the bags at speed to remove the dust from the bags and deposit it into the collection draw below.

Air Volume Range: 2975 m3/hr (1750 CFM)

Benefits

  • All access for maintenance from the front of the unit
  • ATEX compliant explosion relief panel
  • Dust container
  • No need for compressed air
  • Efficient, automatic electric shaker mechanism
  • Weather-proof for positioning outdoors
  • Neat and compact design makes it easy to position

Technical Parameters:

  • Maximum working temperature 80ºC
  • Maximum negative pressure 4000 Pa
  • Maximum positive pressure 1500 Pa
  • Filter area 25 m² Wide range of filter materials to suit most applications
  • Integral, high efficiency 4kW fan
  • Versatile inlet connections
  • including QF-type ducting
  • All electrical connections pre-wired to terminal box on unit

Typical applications

  • Metalwork, grinding, fettling, sanding, polishing
  • Woodwork, dust extraction from small and medium workshops
  • Bulk powders, chemicals, sack tipping, weighing, bagging
  • Educational workshops - ceramics, metal work, crafts and woodwork

 NEW FILTER BAGS FITTED

pdf icon Print / Download Nederman Airmaster Auto M 25 Dust Extractor Datasheet

Additional files

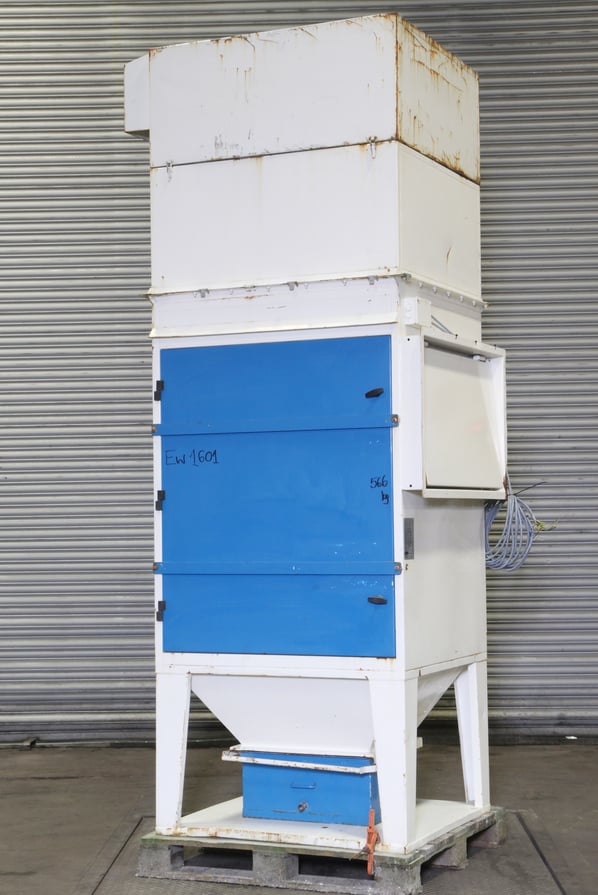

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
