Walther Trowal M-TMD 4/1 Drag Finisher

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Availability:
In stock now
Stock No
VW1151J
Manufacturer
Walther Trowal
Model
M-TMD 4/1
Year of Manufacture
2005
Serial
23005043
New or Used
Used (Second Hand)
Capacity
2 x 245 litres
Type
Drag finisher
Other Info
Ex demonstration model
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
1486
External Dimensions (WxDxH mm)
1600 X 1700 X 2600

Description

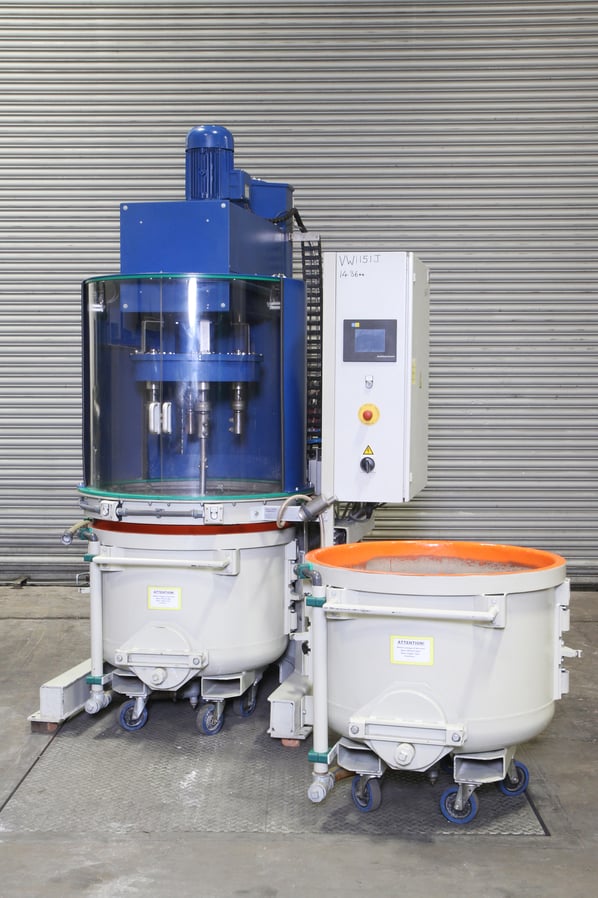

Walther Trowal Drag Finishing Machine

This high quality machine formed part of the demonstration and testing facility at Walther Trowal UK’s Surface Technology Centre. As such this machine is in great condition. Riley Surface World staff have seen this machine working in a well maintained and serviced environment, prior to professional de-commissioning. In addition the manufacturer, Walther Trowal, is available to support this after sale, see below.

The drag finishing systems developed by Trowal represents a special technology for surface finishing of high value, delicate components, parts with many contours and complex geometry and extremely hard materials which are difficult to machine.

The applications for the Trowal drag finishing technology range from aggressive grinding to surface smoothing and high gloss polishing of decorative parts.

Impingement-free mass finishing

Drag finishing and plunge grinding are highly specialised mass finishing methods. Ideally suited for processing delicate, high value, components, these processes provide precise, targeted surface finishes.

The process parts are attached to spindles and dragged through a work bowl filled with grinding or polishing media to prevent part impingement or part-on-part contact.

Applications

Drag finishing and plunge finishing greatly expand the range of mass finishing applications. By ensuring precise, repeatable finishing results, this technology offers significant technical advantages over both manual and robotic grinding and polishing, as well as mechanical brush and grinding systems.

Drag Finishing systems are ideal for finishing high value and sensitive parts which cannot touch each other during the finishing process.

A rotary carousel with work spindles and fixed parts "drags" the workpieces through the media mass. The rotation of both the carousel and the spindles guarantee an even treatment of the parts. Drag finishing offers a metal removal rate which is often up to 40 times higher than vibratory finishing.

Suitable for the following finishing processes:

  • Surface grinding,
  • De-burring,
  • Edge breaking and radiusing, s
  • Surface smoothing,
  • High gloss polishing (wet/dry)

Examples of applications:

  • Orthopedic implants (knee and hip joints)
  • Tablet punches, plungers
  • Gears and pinions
  • Surgical implants,
  • Turbine blades,
  • Precision parts, i.e. pumps and compressors,
  • Parts made from hard metal,
  • Sintered parts, etc.
  • Dies and punches
  • Tool clamping systems, tool holders (drill bits, milling tools)
  • Milling tools (finishing of cutting edge and chip flute treatment)
  • Automotive parts (connecting rods, pistons, valves, gear components)
  • Ball valves
  • Aerospace components
  • Precision parts

 Spinner drive

The rotating spinner head features 4 individual spindles that can be used with a number special fixtures. Each rotates independently and can be adjusted within a given speed range.

Features

  • Spinner with variable speed and rotation settings
  • Workstations: - drag series has a central drive system
  • Equipped with quick connect coupling system for component fixtures •
  • Linear guide for spinners’
  • hydraulic vertical movement
  • Controls for immersion depth

Work bowls

  • The 2 work bowl contains the grinding or polishing media, and can accommodate wet or dry processing.
  • Work bowl can be quickly changed and is easily transported with a manual pallet truck or forklift
  • Media unload plug
  • Wear-resistant, polyurethane lining
  • Bottom drains with large screen area and optional drain flush system
  • Optional process water level control with a special accessory wet processing



Walther Trowal Support

Walther Trowal

This machine formed part of the demonstration and testing facility at Walther Trowal UK’s Surface Technology Centre. Walther Trowal is a world leader in surface preparation technology.

Riley Surface World staff have seen this machine working in a well maintained and serviced environment, prior to professional de-commissioning.

Walther Trowal UK is available to provide technical information, engineering / service support, process trials and processing advice, finishing media, compounds / chemicals and spare parts, details on request.

pdf icon Print / Download Walther Trowal M-TMD 4/1 Drag Finisher Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
