Machines & equipment for sale

ProMinent Dual Dosing System

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment
Stock No
TW200J
Model
250L
Serial
BT5A 0232
New or Used
Used (Second Hand)
Capacity
250 litres
Type
Chemical dosing station
Other Info
2 x 31.8 l/m dosing capacity
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
20
External Dimensions (WxDxH mm)
600 X 600 X 1370

Description

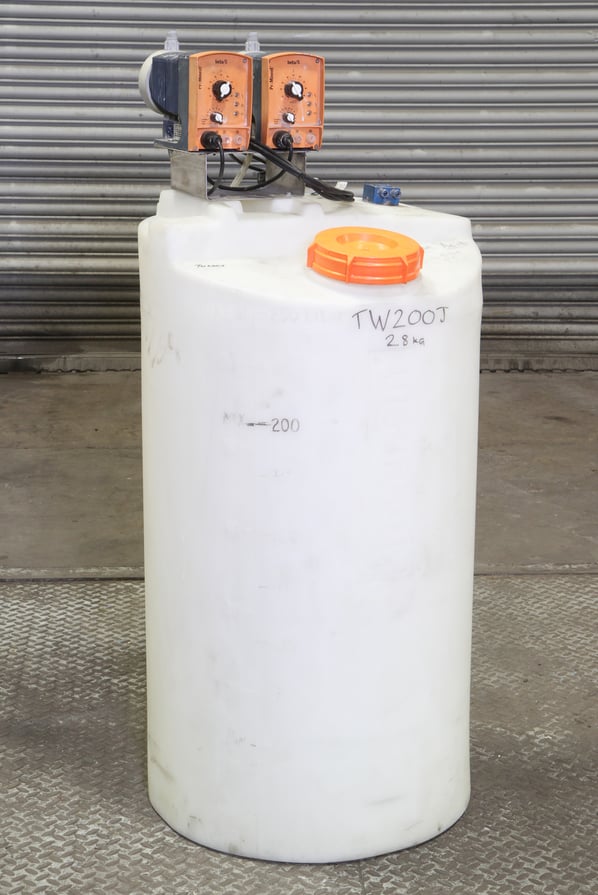

Chemical dosing station consisting of a 250 litre chemical resistant holding tank and twin ProMinent Beta5 Dosing pumps.

The Beta5 virtually wear-free solenoid drive guarantees an exceptionally long service life even under maximum load

Technical Details

  • External control via potential-free contacts with pulse step-up and step-down to adapt to existing signal transducers of 64:1 to 1:64
  • Optional external control via 0/4 – 20 mA and potential-free contacts with pulse step-up and step-down of 32:1 to 1:32
  • Stroke rate adjustment in 10% increments of 10 – 100% corresponds to 18 – 180 strokes/minute
  • Continuous stroke length adjustment of 0 – 100% (recommended 30 – 100%)
  • Connector for 2-stage level switch
  • Wide-range electrical connection: 100 – 230 V, 50/60 Hz
  • Optional relay module, can also be retrofitted easily and securely
  • Low voltage design 12 – 24 V DC

benefits

Industry applications

pdf icon Print / Download ProMinent Dual Dosing System Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
