Machines & equipment for sale

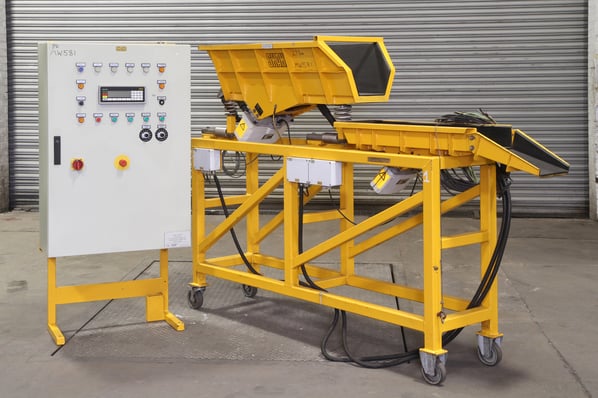

Skako FVE090 Feeder MCE9050 Weigh Checker Pay Loader

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Stock No
MW581
Manufacturer
Skako
Model
FVE090
Year of Manufacture
1997
Serial
59526/371044
New or Used
Used (Second Hand)
Capacity
60kg load cells
Type
FVE090 - CCE - MCE 9050
Other Info
90 litre volume with 60kg capacity
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm)
550 x 2500 x 1720

Description

The SKAKO VIBRATION – ON-Off-system is the culmination of over 35 years material handling experience and was developed in cooperation with customer whose products and production process requires automatic as well as consistent product feeding.

SKAKO VIBRATION - storage feeder type FVE are suited especially for feeding bulk material and also to untangle interlocking products to realise an automatic and consistent product flow.

Specifically for extreme interlocking products which are very difficult to be handled automatically

SKAKO VIBRATION developed the electronic ON-OFF-system where a storage feeder type FVE is combined with a vibration trough type CCE.

This trough is installed on a MCE 9050 60kg load-cell which allows a “communication” between the storage feeder and the vibration trough. The storage feeder batches small and controlled charges of product on to the vibration trough. The vibration trough feeds and spreads the product consistently to the following process machine.

The load cell controls the single charges out of the storage feeder and guarantees a permanent, consistent and automatic product feed.

Automatic Product Feeding for:

  • Discharge of industrial washing and drying machines
  • Feeding and discharge of industrial electroplating- and surface treatment lines
  • Feeding of weighing- and packing machines
  • Feeding of heat treatments machinery
  • Feeding of production-/sorting and control machines

Additional information

  • Motor No1 Type 8D - 19.5A 15/60kg
  • Motor No2 Type 4D - 1.1A 6/24kg
  • Control Panel sizes 800 x 400 x 1700

pdf icon Print / Download Skako FVE090 Feeder MCE9050 Weigh Checker Pay Loader Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
