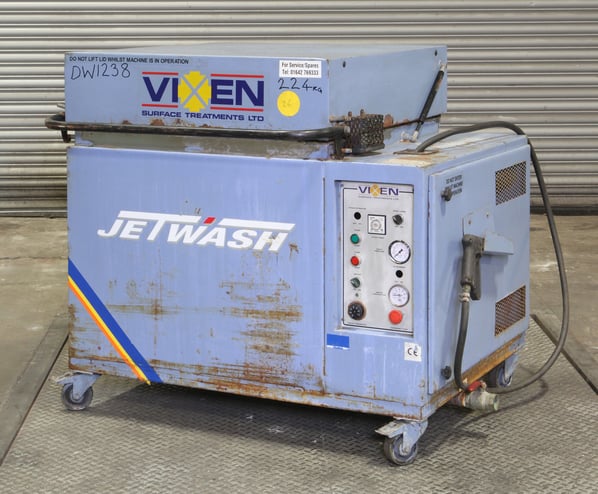

Vixen Surface Treatments JW60 Top loading Spray Wash

Stock No
DW1238
Manufacturer
Vixen Surface Treatments
Model
JW60
Serial
4401
Work Envelope (WxDxH mm)
Ø 600 x 270 high
Process Stages
1
Other Info
Cellular wash system
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
224
External Dimensions (WxDxH mm)
1300 x 1200 x 1150

Description

Jetwash JW60 Top Loading - Aqueous Washing Machine

The Jetwash JW60 is a stainless steel constructed cellular type rotary hot wash spray machine, which uses towns water and any number of environmentally friendly detergents.

The machine is of a double skin construction with an 18 mm injected cavity insulation gap offering maximum thermal insulation to the hot water tank and an extremely strong build rigidity.

Designed to automatically wash / degrease a wide variety of industrial and commercial components.

The operation is very simple, you just load the basket, close the lid, press start. The cycle is adjustable for both time and temperature and resets automatically each time the lid is opened at the end of the cycle.

The wash basket remains stationary while the spray boom revolves around it. This means that any delicate components will not get damaged by shock movements.

The inbuilt stainless steel pumps deliver over 150 litres of water every minute providing plenty of power to remove stubborn and difficult contamination from the components. This water is returned to the tank and is filtered to remove debris via an easily accessible collection filter basket.

The spray bars fully envelope the basket offering a full 360°C wash pattern. For ease of loading larger parts, the spray bars can be split in the middle and pushed aside to allow the parts to be loaded directly from overhead with a crane or forklift unit.

The wash cycle of the most components are typically cleaned and flash dried within just a few minutes.

STANDARD FEATURES:

  • Fully stainless steel internal and externally panels
  • Insulated double skin construction
  • Fully automatic

ADDITIONAL FITTED FEATURES:

Pressure spray lance for the spot cleaning of heavily contaminated parts

TECHNICAL

  • External dimensions 1300 x 1200 x 1150
  • Electrical supply 415 Volt 3ph 25 Amps

pdf icon Print / Download Vixen Surface Treatments JW60 Top loading Spray Wash Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
