Mil-tek AP 205 Cardboard & Plastic Baler

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Availability:
In stock now
Stock No
MW578
Model
AP 205
Year of Manufacture
2003
Serial
4803 4798
New or Used
Used (Second Hand)
Work Envelope (WxDxH mm)
655 x 400 x 1350
Process Stages
Single action baler
Other Info
Pneumatically actuated
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
206
External Dimensions (WxDxH mm)
760 x 530 x 2400

Description

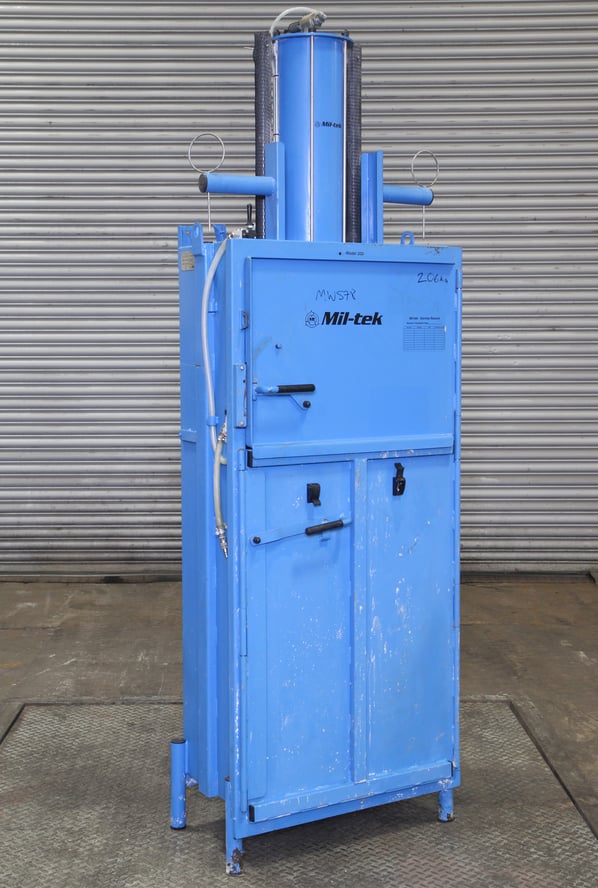

Mil-tek AP 205 Cardboard & Plastic Baler

The Miltek AP 205 baler has a long vertical chamber creating a bale, while covering a small floor space.

  • Constant pressure: highest compaction degree
  • Bale plastic, cardboard and other material
  • Ergonomic, easy, clean and safe
  • Low on noise, low on energy
  • Long vertical chamber
  • Manageable bale size
  • Large door opening

Product Overview

The safety and the operational features make the Mil-tek AP 205 a flexible solution that can fit almost any location and contribute to a clean and safe working environment. The long vertical chamber creates a bale almost twice the size of a model 102, while covering a similarly small floor space of about one square metre.

The safety and the operational features make the Mil-tek AP 205 an ergonomic, easy, clean and safe machine to use.  The AP 205 can be situated close to where waste is generated, and its simple design means can be operated by any regular staff member: You simply put in your material, close the door, pull the handle and let the machine do the real work. Mil-tek machines have an extremely fast pressing cycle of between 10-20 seconds.

The Mil-tek AP 205 is powered by compressed air, either directly from an existing air-line or from a compressor supplied by Mil-tek. This means that the Mil-tek AP 205 is free of both electrical and hydraulic components, minimizing the risk of fire and completely eliminating the risk of oil contamination.

Specifications

Machine size

Height (mm)2445
Width (mm)745
Depth (mm)545
Weight240 kg

Bale size

Height (mm)840
Width (mm)650
Depth (mm)450
Bale weightPlastic: < 100 kg
 Cardboard: < 50 kg

Door Opening

Height (mm)575
Width (mm)650
Depth (mm)415



Degree of Compression85-90%
Noise level< 70 dB (A)
Pressure2250 kg at 8 bar
ApprovalsCE & AS/NZ 4024.1
