IWM (Industrial Washing Machines Ltd) Crusader 800 SP 4 Stage Wash And Rinse Machine

Special Offer

Refurbished Price [?]
£ 15,750 (+ VAT)
Special Price (sold as seen) [?]
£ 1,950 (+ VAT). Available for immediate collection.
Special offer ends
13 December 2018 15:00 GMT while stocks last
Condition
Current Model
Stock No
DW1234
Manufacturer
IWM (Industrial Washing Machines Ltd)
Model
CRUSADER 800 SP
Year of Manufacture
2001
Serial
332 - C8SP A/212/02V
Work Envelope (WxDxH mm)
540 x 5000 x 575
Process Stages
4
Other Info
All Stainless steel construction
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
2500kgs approx
External Dimensions (WxDxH mm)
1600 x 5150 x 2050

Description

IWM (Industrial Washing Machines) tray wash and rinse machine.

A 4 stage gas heated Industrial Washing Machines Ltd, Industrial and commercial Stainless steel tray washing and rinsing machine.

The Industrial Washing Machines Ltd tray washer has high flow heated re-circulated wash and rinse sections, treatments and final fresh water rinse to drain cleaning. The machine was designed for all plastic, aluminium or steel baskets or fixtures up to a maximum size of 500 mm wide, x 500 mm deep, with a throughput of up to 600 - 800 trays per hour.

IWM manufacture a full range of  wash systems. The most popular being the T800, which is a multi-stage, single lane continuous wash machine designed to meet the stringent demands of industrial and commercial cleaning.

With the multi tank modular format and stainless steel construction of these wash systems, surface treatments such as etching, coatings and Iron phosphating can also be applied with little adjustment.

Benefits of the T800 wash system:

  • Hygienic design complies with all UK and EU standards, and all are CE assessed and certified
  • Available in a variety of formats to suit customer applications
  • Cost efficient, dependable and effective washing capabilities
  • Robust, streamline design with excellent access to all areas for ease of maintenance and cleaning

Process operations:

Stage 1 Pre-wash / Wash tank. Sustained jetting with hot water and detergent, re-circulated from a gas fired heated wash tank fitted with Lanemark tube heater,  temperature range from 10 degrees above ambient to + 85ºC, a 7.5kW stainless steel wash pump, two stage stainless steel filter pads and a secondary rotary filter unit.

Stage 2 2nd Wash / Rinse tank. Sustained jetting with hot water to remove detergent, re-circulated from a heated rinse tank fitted with Lanemark tube heater, temperature range from 10 degrees above ambient to 85ºC, two stage stainless steel filter pads, and a 7.5kW stainless steel pump. Alternatively this tank can be used as a second wash station for heavily contaminated parts.

Stage 3 Rinse / Treatments tank. Electrically heated pumped recirculated mist rinse tank or alternatively for sprayed treatments tank, such as a neutraliser solution.

Stage 4  Final rinse stage Towns water / de-ionised final rinse station, either towns water pressure fed or gravity fed from storage, draining to waste.

Benefits:

  • Streamlined, robust design with easy access to all areas for routine cleaning and maintenance
  • Hygienic design complies with all UK and EU standards, and all are CE assessed and certified
  • Cost efficient, dependable and effective washing
  • Fully assembled and tested prior to dispatch
  • Compact footprint for minimal operation space

Features:

  • Stainless steel T304/316 construction
  • Adjustable levelling feet
  • Sustained jetting with hot detergent and rinse water recirculated from heated tanks.
  • Cold spray rinse / treatments stations
  • Curtained separation of stations to minimise cross contamination.
  • Interchangeable wash and rinse nozzles for quick and easy servicing.
  • Digitally controlled electric heating.
  • Electronic water level control with built in low level protection for pumps and heating systems
  • Separate fresh water rinse to drain
  • Safety switches to access doors
  • Stainless steel control panel to IP66 standard complete with CAT IV 24V DC control and safety circuits
  • 3M Stainless steel pumps, filters and jet pipe system
  • Steam extraction fan
  • One man operation





pdf icon Print / Download IWM (Industrial Washing Machines Ltd) Crusader 800 SP 4 Stage Wash And Rinse Machine Datasheet

Additional files

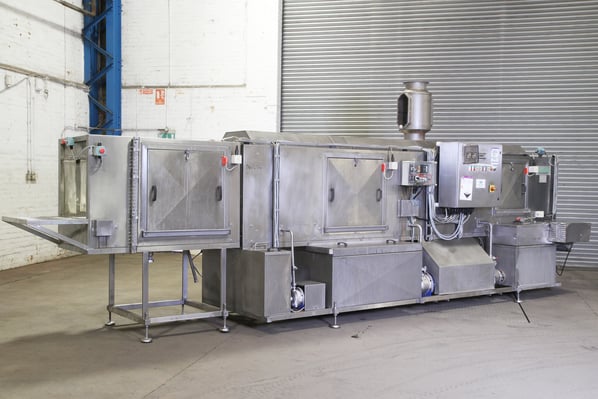

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
