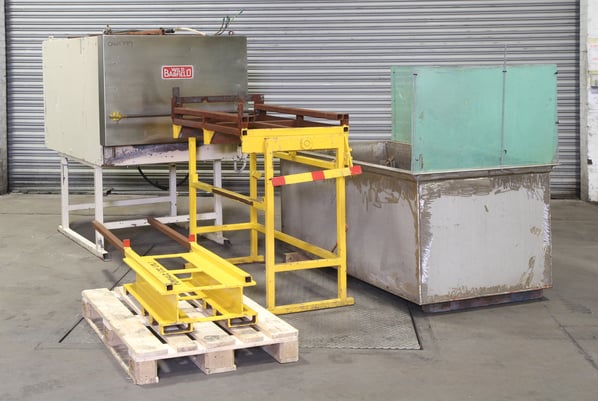

Wild Barfield Model HGP4 Electric Furnace And Quench Tank.

Stock No
OW1779
Manufacturer
Wild Barfield
Model
HGP 4
Serial
CA015P
Internal Size (WxDxH mm)
665 x 1100 x 500
Max Temp
1200°C
Other Info
With rapid quench tank
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm)
1270 x 1850 x 1660 +

Description

Wild Barfield Model HGP4 Electric Furnace And Quench Tank.

The 1200°C Large Chamber Utility Box Furnace is designed to meet demanding applications.

The insulation and heating elements in this furnace  maintain uniform heat distribution for an energy efficient design. With cool outer surface temperatures and vertical lift door option for ease of access. The Unit is available with a stainless steel quick quench tank allowing hardening processes to be achieved.

When used with the quench tank parts are loaded on trays with the provided charger for the appropriate time and temperature into the furnace. Upon completion of the cycle the parts are removed and placed on the Tip over quench platform which entraps the tray. Once positioned a lever is actuated and the platform leans over at 45°, whereby the product slides off and plunges into the cooling medium. Once cool the inner tray from the tank is lifted so the parts can be then be retrieved.

Benefits

  • Double sided Insulation and heating elements maintain uniform heat distribution
  • Energy efficient design
  • Cool wall design
  • Fast acting door

Features

  • High density insulation with fully embedded heating element
  • Double wall construction
  • Vertical lift door
  • Programmable controller
  • Electrically heated 45kW
  • Low thermal mass insulation
  • Silicon carbide hearth
  • Rapid heating with iron chrome alloy heating elements
  • Excellent temperature uniformity over the range 50°C – 1200°C
  • Low case temperatures
  • Forklift charge loader
  • Tip over quench platform with stainless steel quench tank

Controls

  • Separate control panel on right hand side housing:
  • Eurotherm P.I.D. digital temperature controller
  • Eurotherm Excess temperature cut out instrument
  • Main heating thyristor and safety back-up contactor
  • Main isolator
  • Fuses and circuit breakers
  • 110V control
  • Process timer
  • 24/7 day timer

Possible treatments applications

  • Annealing
  • Ashing
  • Carbon Firing
  • Ceramic Firing
  • Hardening
  • Sintering
  • Normalizing
  • Austempering
  • Brazing
  • Preheating
  • Solution Treating
  • Stress Relieving
  • Aging





pdf icon Print / Download Wild Barfield Model HGP4 Electric Furnace And Quench Tank. Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
