Machines & equipment for sale

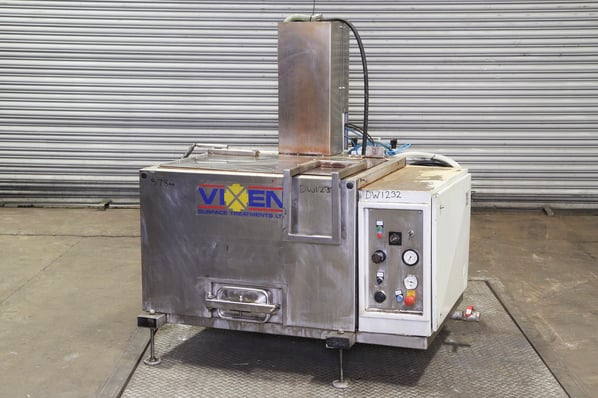

Vixen Surface Treatments Agiwash

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Stock No
DW1232
Manufacturer
Vixen Surface Treatments
Model
AGI 80
Year of Manufacture
2012
Serial
2532
New or Used
Used (Second Hand)
Work Envelope (WxDxH mm)
785 x 500 x 350
Process Stages
1
Other Info
basket size - 785 x 500 x 200mm
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
378
External Dimensions (WxDxH mm)
1450 x 1350 x 1530

Description

Agiwash degreasing machine

Vixen surface treatments’ Agiwash range of machines has been developed for degreasing components that need to be completely immersed in hot water-soluble detergents. Agiwash machines are particularly effective for cleaning tubular items or components that have hollows which are required to be flushed through with detergent.

Agiwash degreasing machines are fitted with a pneumatic ram connected to the wash basket carrier. A lever control raises the wash basket to the loading position, with the basket filled and then lowered into the detergent.

During the wash cycle, the basket is raised and lowered by the pneumatic ram at an approximate rate of 60 strokes per minute, causing a flushing action to occur. The cycle duration for washing and degreasing is adjustable, and automatically resets each time the start button is pressed. The components are cleaned quickly and usually flash dry easily. Drying compartments are available from vixen surface treatments if required. Options for the Agiwash include multi-stage agitation for complex part cleaning, for example: ultrasonics, pumped water agitation, filtration, second stage rinse and more.

Features

  • Double-skin insulated construction retain heat
  • Fully-automatic
  • Oil tap & weir remove oil from the surface of the water
  • Water level safety trip
  • Temperature control
  • Stainless steel interior
  • 785 x 500 Work platform

pdf icon Print / Download Vixen Surface Treatments Agiwash Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
