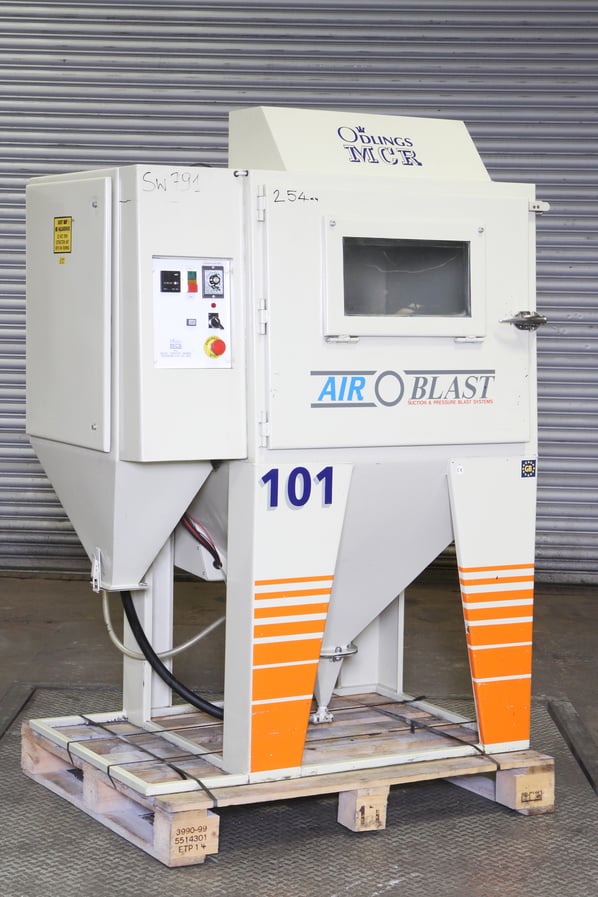

Odlings MCR 101T Sand Blast Machine

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Stock No
SW791
Manufacturer
Odlings MCR
Model
101T
Year of Manufacture
07/2000
Serial
01751Q03
New or Used
Used (Second Hand)
Work Envelope (WxDxH mm)
Basket size 500 AF x 300
Work Handling Method
Manual Load Auto Blasting
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
163
External Dimensions (WxDxH mm)
1300 x 1100 x 1850

Description

Oddlings MCR produce this 101T tumble dry blast cleaning cabinet to automatically blast clean or treat batches of small to medium-sized components with the minimum of operator assistance.

A major benefit of using a tumble dry blast machine is that they offer a more cost-effective alternative to using a hand blast cabinet. Components are loaded into the drum where they are slowly tumbled under a stream of media which is delivered by the adjustable blast gun position on its holder above the barrel.

The Tumble blast can be operated with a wide range of blast media, including plastics, vegetable matter, glass bead and alumina. Chilled iron grit and steel shot may also be used in pressure-fed systems (optional extra).

At the end of each timed cycle, the drum continues to rotate to remove media from the components and the drum. Parts may then be removed manually from the drum or by removing the whole drum for emptying.

The 101T's design is compact with its space saving, inbuilt dust extraction system which minimises the floor space required. The front loading door has a large viewing window so the operation can be monitored during processing and the attached control panel has simple stop start controls with a timer function.



pdf icon Print / Download Odlings MCR 101T Sand Blast Machine Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
