Walther Trowal Flighted Uplift Conveyor

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Stock No
VW1134J
Manufacturer
Walther Trowal
New or Used
Used (Second Hand)
Type
Flighted
Other Info
Interchangeable link belt
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm)
8500mm x 650mm x 2320mm

Description

This machine formed part of the critical sub-contract metal laundry facility at Walther Trowal UK’s Surface Technology Centre. Riley Surface World staff have seen this machine working in a well maintained and serviced environment, prior to professional de-commissioning and operated by trained and knowledgeable operatives. In addition the manufacturer, Walther Trowal, is available to support this after sale, see below.

Walther Trowal flighted belt conveyors are an ideal way of conveying products from process equipment and lifting to allow loading to either storage or a second process.

By incorporating a combination of flights and fitted side walls, bulk type material and small components can be conveyed at an angle without the product over spilling or rolling back.

Flighted Inclined Belt Conveyor 320 wide x 8000 mm long, 600mm incline  over the last 1700 mm. The belt has a 25 mm high flights @ 360 mm pitch and a discharge height of 1950 mm.

Complete with side guides 110 mm high over the length of the conveyor, tight against the belt edge

The conveyor is mounted on a box section frame.



Walther Trowal Support

Walther Trowal

This machine formed part of the sub-contract metal laundry at Walther Trowal UK’s Surface Technology Centre. Walther Trowal is a world leader in surface preparation technology.

Riley Surface World staff have seen this machine working in a well maintained and serviced environment, prior to professional de-commissioning.

Walther Trowal UK is available to provide technical information, engineering / service support, process trials and processing advice, finishing media, compounds / chemicals and spare parts, details on request.

pdf icon Print / Download Walther Trowal Flighted Uplift Conveyor Datasheet

Additional files

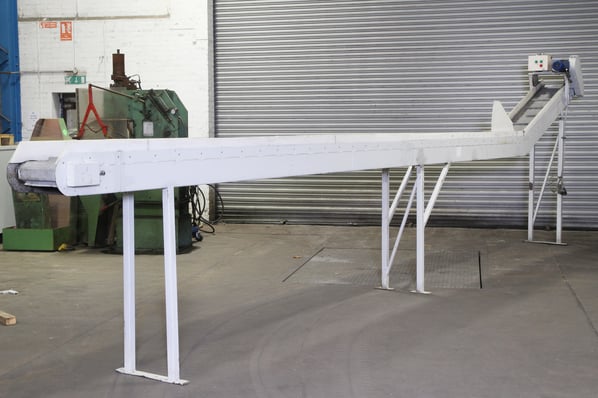

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
