Machines & equipment for sale

Carbolite LGP6/730 High Temperature General Purpose Oven

Special Offer

Refurbished Price [?]
£ 11,750 (+ VAT)
Special Price
£ 10,950 (+ VAT)
Special Price (sold as seen) [?]
£ 7,950 (+ VAT). Available for immediate collection.
Special offer ends
06 September 2018 15:00 GMT while stocks last
Stock No
OW1772
Manufacturer
Carbolite
Model
LGP6/730SPL
Serial
64235
Internal Size (WxDxH mm)
900 x 900 x 900
Max Temp
625°C
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm)
1775 x 1375 x 1265

Description

Large general purpose industrial batch ovens (LGP)

Carbolite’s LGP range of industrial batch ovens sets the standard for a wide range of industrial processing applications.

The LGP large general purpose oven with an internal capacity is 730 liters, and a temperature range to 625°C.

Carbolite’s LGP range of industrial batch ovens sets the standard for a wide range of industrial processing applications such as AMS 2750 heat treatment under Nadcap, with its sophisticated control system and data recording facility, stainless steel process chamber and double seal door arrangement.

Standard Features

  • 625°C maximum operating temperature
  • 730 liter chamber volumes
  • PID digital set and display using the programmable Eurotherm 900 and 2216 controllers
  • Large capacity, rugged well proven design
  • Robust construction, for heavy duty cycles
  • Efficient air circulation and excellent temperature uniformity from heavy duty impellers
  • Corrosion resistant ferritic grade 430 stainless steel interior Steel section & zinc coated, painted mild steel exterior
  • Single door model
  • Powered exhaust fan
  • low thermal mass insulation for high energy efficiency
  • Fully adjustable chamber ventilation

Specifications

LGP 6/730 Max temp 625°C

  • Min temp (C) Ambient +35
  • Volume (liters) 730
  • Temp stability (C) 0.5
  • Temp uniformity (C) 5.0 @250C
  • Heat-up time (mins) 75
  • Doors Single door
  • Shelves fitted / accepted 0 / 4
  • Shelf loading each / total (kg) 50 / 200
  • Max power (W) 18000

pdf icon Print / Download Carbolite LGP6/730 High Temperature General Purpose Oven Datasheet

Additional files

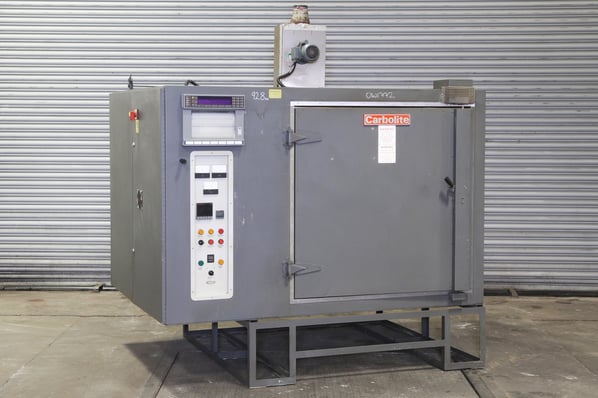

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
