Rosler Vibro-Finishing Installation 2006

Direct From Site Clearance

Direct Site Clearance Price [?]
£ 26,000 (+ VAT)
Part of a Direct Site Clearance

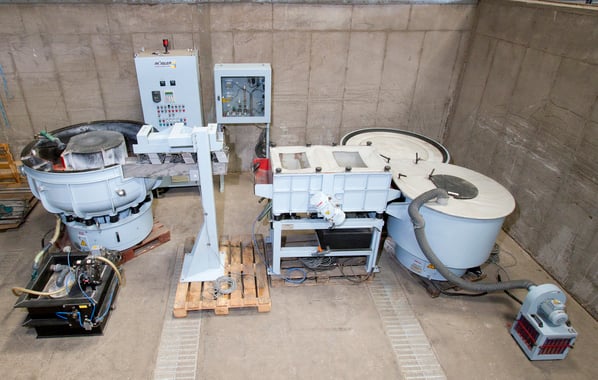

Rosler Vibratory Mass Parts Finishing Installations
Location
Sutton Coldfield, West Midlands, UK
Stock No
NUN002
Manufacturer
Rosler
Model
R420 Vibratory Bowl with Equipment
Year of Manufacture
2006
Serial
32488/04 - 32491/04
New or Used
Used (Second Hand)
Capacity
420 litre Bowl & 240 litre Drier
Type
4 Stage-Vibrofinish, Rinse, Dry, Storage
Other Info
High capacity universal finishing cell
Location
Sutton Coldfield, West Midlands, UK

Description

Rotary Vibrator R420 EURO So -  Processing Bowl

  • Vibration  resistant welding construction, lined with wear resistant lining.
  • Within the processing bowl there is installed an half rise
  • The connections for water and compound supply are fitted to the upper edge of the processing bowl
  • The process bowl is provided with a chips removal cover which can be close by a screw spindle. Water drainage through holes in the chips removal cover.
  • The separation screen is made of PE material or PU material and will be fixed into the process bowl by wedges

 Separation

  • The separation flap is mounted movable in the process bowl actuated by a pneumatic cylinder
  • The separation flap is lowered to the upper edge of the half rise
  • The components are transported over the screen and get out of the machine
  • The chips fall through the separation screen and remain in the processing bowl

Rinsing Station R12/6 SM-E SO
Separation unit divided into two sections:

  • Removable PVC Splash Cover
  • Stepped screening area
  • Separation section l x w = 600 x 600
  • Separation section l x w = 600 x 600
  • Drive actuated by two maintenance free vibration motors
  • Stress relieved structure
  • Rinse bars positioned above the separation screens
  • Tank and rinse water pump return positioned underneath the screening unit
  • Entry Chute lined in spray Polyurethane
  • Exit Chute lined in Spray Polyurethane
  • Separation Screens coated in Polyurethane.

Rotary Drier - RT 250 EURO - with Dust Extractor STA 4

Drive

  • The drive is effected by a vibration motor
  • The motor is mounted in the centre of the processing bowl
  • The unbalance packages are mounted at the upper and lower shaft end of the motor
  • The upper unbalance weight can be distorted due to the scale
  • the working intensity is depending on the movement of the component media mixture in the processing bowl.
  • With the rotation speed the mixture in the machine moves in longitudinal direction through the circular processing bowl
  • 'Taking in' spiral movement from the outer to the inner wall of the bowl

 Processing Bowl

  • Vibration-resist and welding construction with separation screen
  • The separation screen is made of stainless steel mesh wire
  • After releasing the screws the separation screen can be taken out of the rotary drier
  • Therefore the rotary drier can be used for continuous flow or batch operation
  • The opening and closing of the separation flap can be done by hand lever valve or by the switch.
  • Flat coil springs are placed between processing bowl and machine frame providing an elastic support.

 Metering Pump RD-CN-PA

  • Stroke length adjustment knob
  • Error/operating indicator (Error - Red /Operation - Green)
  • Multifunction switch (stroke rates (in % of 180 strokes/min) stop, operating mode, 'external' (retrofit kit))
  • Power cable
  • Float switch socket
  • Suction valve
  • Discharge valve

 Sound Absorbing Lids -SDD 420 P-So

  • Control of the lid by manual solenoid valve or operation elements in the switch unit of the processing machine
  • The sound absorbing lid is moved by a pneumatic cylinder controlled by a hand lever valve (for electric operation by solenoid valve)
  • To secure the lid in case of an air pressure loss, additional gas springs are mounted
  • The lid is made of GFK material and lined with special foamed material or rubber
  • The stand is a solid welded construction
  • The slewing head is guided in bearings
  • The cover is fixed at a cover beam
  • Cover beam and stand are connected by flanges

Storage Table R150 TA

  • The rotation of the table is driven by a planetary gear motor with variable speeds
  • The motor is mounted underneath the table
  • The speed of the rotation can be adjusted at the drive motor
  • The round table is made if welded metal construction
  • It is mounted on a frame
  • The frame can be fixed on the floor by screws and dowels

P9 Lifting Station

  • Used for transferring waste water from one area to another.
  • All waste water from the machine is gravity fed into this lifting station and then transferred to either a drain or effluent treatment system.
