Stainless Steel Tank Cleaning Line

Special Offer

Special Price (refurbished) [?]
£ 8,850 (+ VAT)
Special Price (sold as seen) [?]
£ 5,950 (+ VAT). Available for immediate collection.
Special offer ends
13 December 2018 15:00 GMT while stocks last
Stock No
TW194
Model
Cleaning line
Work Envelope (WxDxH mm)
1800 x 1100 x 1100
Process Stages
5 stage, wash, rinse and dry.
Other Info
All Stainless steel construction
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
2800
External Dimensions (WxDxH mm)
7630 x 2140 x 1240

Description

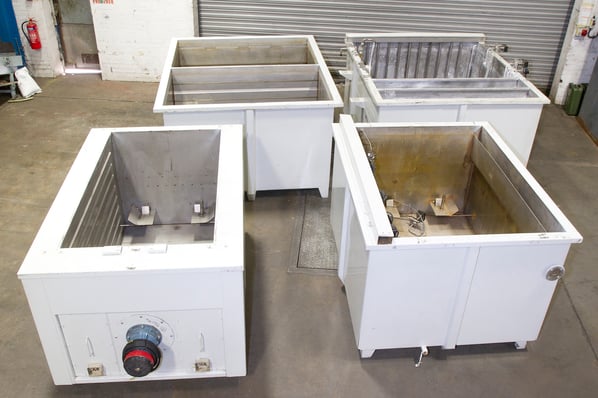

Here we have a collection of matching stainless steel  tanks acquired from an Aerospace engine manufacturers site. The tanks were originally used for the component cleaning of aircraft engine components prior to assembly.

The tank lineup lends itself to a multitude of wet chemical processing from stripping coatings, alloy wheel cleaning, cleaning and iron phosphate coating and many others.

As each of the stations are independent of each other the tanks can be either arranged in a linear line under an overhead hoisting unit or as dictated by the available space and used in a hand loading operation.

Typical process lineup

Soak Cleaning

  1.  Soak clean in station one with any flocculent waste being trapped through the integral weir system
  2. Contraflow rinsing in the dual station tank 2
  3. Seal in the stain free De Ionised hot water rinse tank.
  4. Dry product in the recirculating well oven

Process line overview.

Tank 1 - Cleaning Tank
Internal Dimensions 1800 L x 1100 W x 1100 H
External Dimensions 1980 L x 2200 W x 1240 H
Heated with 12x 3KW Immersion Heaters
Air Agitation coil fitted
Level switch for heating safety
Ballcock controlled auto water entry
Recirculating Weir system

Tank 2 - Twin Contraflow Rinse Tanks
Internal Dimensions x 2 (EACH) 1800 L x 1100 W x 1100 H
External Dimensions 1980 L x 2340 W x 1240 H
Air Agitation coil fitted
Weir system

Tank 3 - Heated Seal / Rinse
Internal Dimensions 1800 L x 1400 W x 1100 H
External Dimensions 2140 L x 1640 W x 1240 H
Heated with 12 x 3kW Immersion Heaters
Air Agitation fitted
Level switch for heating safety
Weir system

Tank 4 - Well Type Hot Air Electric Drying Oven
Internal Dimensions 1800 L x 1040 W x 1100 H
External Dimensions 2140 L x 1450 W x 1240 H
Fan Assisted Recirculating Oven

 NOTE No control panel available

pdf icon Print / Download Stainless Steel Tank Cleaning Line Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
