Vacublast (Wheelabrator) Vacublast Ventus 90 S Venturi Blast Cabinet

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Availability:
In stock now
Stock No
SW769
Manufacturer
Vacublast (Wheelabrator)
Model
Ventus 90 S
Year of Manufacture
27/11/1992
Serial
M0070892
New or Used
Used (Second Hand)
Work Envelope (WxDxH mm)
700 x 880 x 660
Work Handling Method
MANUAL
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
280
External Dimensions (WxDxH mm)
1000 x 1000 x 1800

Description

The Ventus 92S suction fed air blast cabinet has been designed specifically for production applications where a less aggressive surface treatment is required.

It offers advanced features to ensure efficient operation and maximum operator comfort. It incorporates
an separate dust collector which minimises dust emission from the cabinet.

Typical applications;

-Cosmetic finishing
-Mould cleaning
-Corrosion removal
-Glass etching
-Paint stripping
-Preparation for painting,
-Bonding and plating
-Rust and heat scale removal

Features:
- Low noise levels
- High ventilation rate for good visibility
- Robust construction
- Large viewing window
- Elliptical glove ports to suit a wide range of operator sizes
- Internal blow down gun
- Anti-static gauntlets
- Adjustable feed valve for superior,even abrasive feeding
- Interlocked door

Basic specification:

Enclosure W x D x H: 896 x 796 x 800 mm
dust extractor dimensions: W x D x H - 500 x 580 x 1000mm
Power consumption: 0.55 kW
Air consumption (max): 1.1m3/min (38 cfm)
Lighting level (average): 900 Lux
Dust collector efficiency: 3 mg/m3
Electrical supply: 400V, 50Hz, 3 phase
Recommended media:
Glass beads: 45/85 - 400/800
Aluminium oxide: 180/220 - 24/30
weight - 57kgs

pdf icon Print / Download Vacublast (Wheelabrator) Vacublast Ventus 90 S Venturi Blast Cabinet Datasheet

Additional files

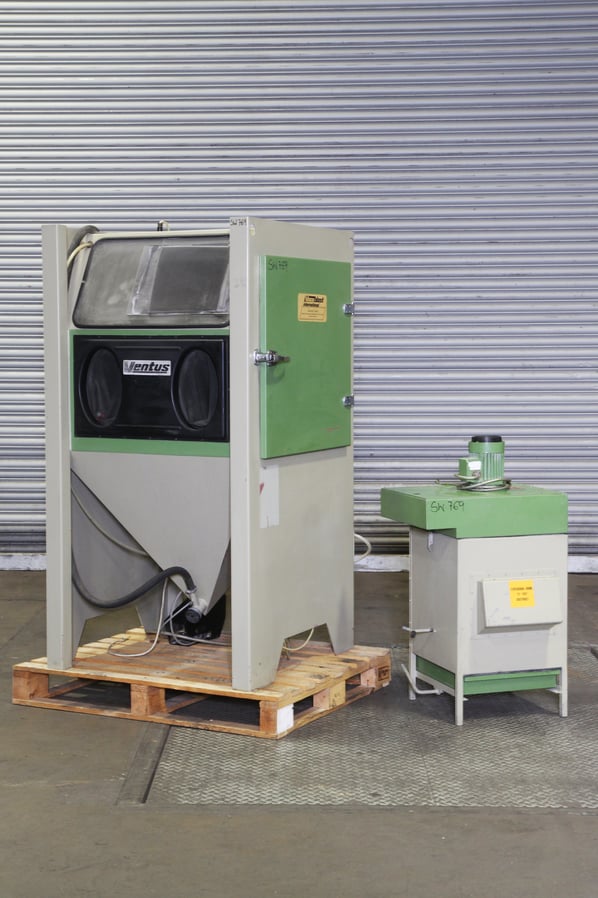

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
