Genlab MCU9HS Bench Top Oven

Stock No
OW1669
Manufacturer
Genlab
Model
MCU9HS
Serial
YOMM 085
Internal Size (WxDxH mm)
880 x 430 x 520
Max Temp
250
Other Info
Twin door model
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
114
External Dimensions (WxDxH mm)
1090 x 620 x 930

Description

The GENLAB Multipurpose Oven offers a highly efficient, reliable and accurate unit, suitable for applications in drying, curing, general laboratory and industrial uses.

Features

  • Capacity 200 Litres in a horizontal style
  • Temperature range: 50ºC to 250ºC
  • Manual controller
  • Safety overheat thermostat
  • Forced convection fan circulation
  • Easy clean powder coated body
  • Aluminium coated mild steel chamber

Accessories

  • Extraction port

Design

The exterior is constructed from sheet steel finished in an easy clean powder coated paint. The interior chamber is made from mild steel coated with aluminium (CLAD).

Fitted with fixed shelf runners and removable chrome plated wire grid shelves.
The horizontal style unit is fitted with twin doors.

Heating

Heated by Incoloy sheathed elements positioned in the base fan duct.

Controls

The control system comprises of a simple manual dial type thermostat. It also includes mains switch with indicator and heat and overheat indicators.

The control panels are fitted to the base of the unit for easy use when placed on a work surface.

Specifications

Horizontal Style
Genlab ref.
Number
Capacity
(litres)
Internal dims.
(H x W x D cms)
External dims.
(H x W x D cms)
No. of
Shelves
No. shelf
positions
Weight
(kg)
MCU/9S200880 x 430 x 5201090 x 620 x 93034114



Electrical requirements

240V
8A
50Hz



pdf icon Print / Download Genlab MCU9HS Bench Top Oven Datasheet

Additional files

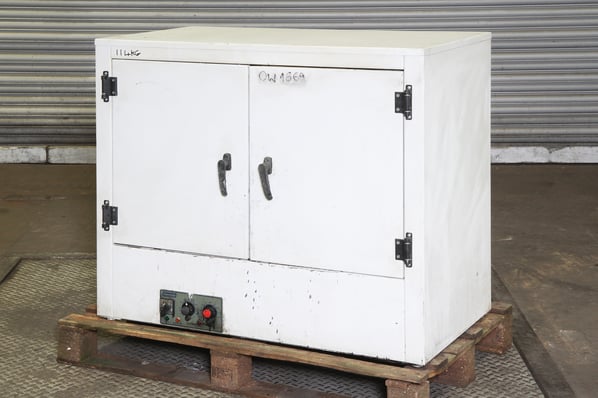

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
