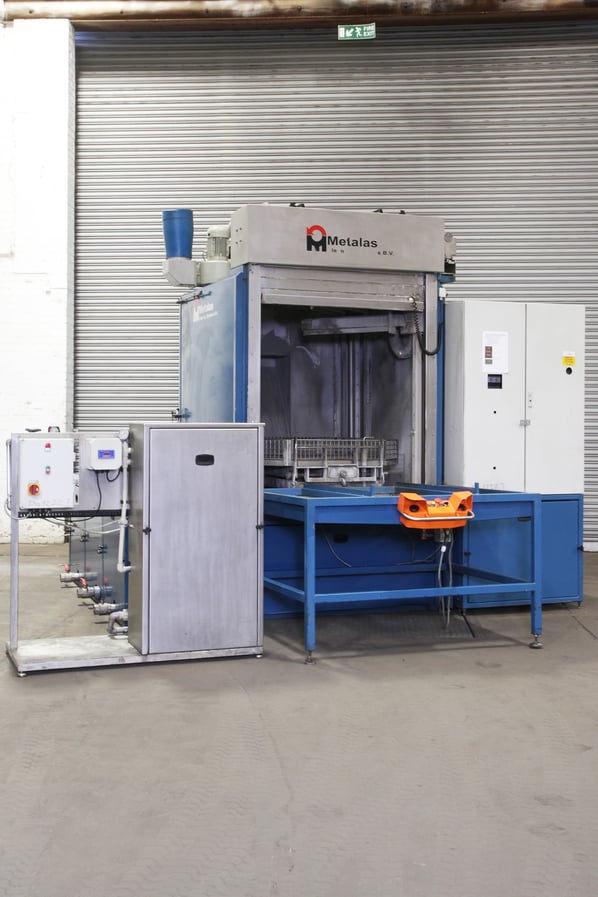

Metalas MCF 1500/3T Multi Stage Rotary Basket Wash Plant

MCF 1500/3T Multi Stage Rotary Basket Wash Plant

Stock No: DW1222J
Manufacturer: Metalas
Model: MCF 1500/3T
Year of Manufacture: 2008
Serial: 99.80281
New or Used: Used (Second Hand)
Work Envelope (WxDxH mm): 1200 x 1200 x 1000
Process Stages: 1-7 stages 3 Wet + Rinse + Drying
Other Info: High 1000kg Load Capacity
Location: Our Central Warehouse, Aldridge, UK
Weight (kgs): 2750
External Dimensions (WxDxH mm): 3675 x 2750 (3770 with cart) x 3175

Description

The Metalas MCF 1500/3T multi stage front loading rotary spray cleaner puts a stop to all other time consuming and high cost cleaning and surface preparation methods.

The specific properties of this range of machines are reliability, robustness, high quality design, easy to operate, and easy to maintain.

The model MCF 1500/3T (Front loading type) is suitable for cleaning components in industrial and maintenance workshops during both manufacture and assembly, as well as refurbishment in the automotive vehicle trade and all at minimal operating costs.

The surprisingly effective and thorough cleaning is obtained by the combination of spray jets, a large volume of heated detergent water and the bouncing whirlpool action which cleans the dirtiest parts in around 5-15 minutes and all within a totally enclosed system.

The machines cleans everything, not only metals, but also plastics, composites, and compound materials etc.

Instead of several separate tanks, which take up valuable floor space and incur costly labour and transport charges, cleaning can now be carried out in one machine with a multi process system. In this machine you can either pre-clean, de-carbonize, wash, phosphate, rinse and/or rust inhibit components.

This system is ideal for high end cleaning for such industries as aerospace where numerous cleaning stages are required. Alternatively the machine can be used as a surface coatings machine to apply finishes such as iron phosphating of components prior to painting.

As cleaning takes place in a totally enclosed system, vapours are unable to enter the workshop and working conditions are vastly improved. Just press the button and the variable programme will run automatically saving money, time and labour.

Basic Specification:

Loading surface: 1200 mm x 1200 mm
Useful loading height: 1000 mm
Admissible table grid load: 1000 Kgs

Standard features:

AISI 316 Stainless steel pumps
AISI 304 Stainless steel tank, pickled and rinsed
Stainless steel heating elements
Insulated cabin and door
Insulated fluid tanks with lids
Low water level control with auto chemical solution make-up
Easy to access liquid tank with sludge/ dirt gutter and cleaning hatch
Waterproof switch control panel box (IP54)
Easy to clean ﬁlter baskets
Fine filter cartridges
Intermediate "E" pipe on tanks 2 & 3 for use with small components
Direct mechanical drive with safety clutch
Programmable Wash timer
Mains isolator
Emergency stop
2” BSP drain valves
Programmable temperature controlled thermostats
Steam extractor fan
Stainless steel 316 wash chamber
Electric roller shutter door
Supply trolley
Oil skimmers to tanks 1 & 3
Manual hand spray lance
2 Handed safety button hydro powered load and unload platform
Door curtain safety edge
Hydraulic table load/unload assist

Technical details model MCF 1500

Dimensions

Loading surface 1200 x 1200 mm
Useful height 1000 mm
permissible table grid load 1000 kg
Width 3675 mm
Depth (load trolley removed) 2750 (3770 with trolley)
Height 3175 mm
Loading height 910 mm
Weight of machine (empty) 2750 kW
Working voltage 400Volts, 3ph, 50Hz, 37.3kVA, 140 Amps 115 kVa
Control voltage 24 VAC

Tank details
Tank 1 (Wash)

Capacity tank 450 litres
3 x 6kW SS heaters
5.5kW pump offering 25m³/h flow rate at 5 bar
Oil skimmer
2 x Filter baskets (1000 micron)
Water level control and chemical dosing for auto solution makeup

Tank 2 (Di Rinse / seal)

Capacity tank 300 litres
3 x 6kW SS heaters
5.5kW pump offering 25m³/h flow rate at 5 bar
Inlet/outlet connections for Purite Di Water
2 x Filter baskets (1000 micron)
Water level control and chemical dosing for auto solution makeup

Tank 3 (pre-clean)

Capacity tank 600 litres
4 x 6kW SS heaters
7.5kW pump offering 32m³/h flow rate at 5 bar
Oil skimmer
2 x Filter baskets (1000 micron)
Water level control and chemical dosing for auto solution makeup

Intermediate town water rinse
The town water rinse system can be programmed to be utilised between any of the cleaning and rinse steps in a programme, allowing the prevention of cross contamination between holding tanks when differing solutions are being used. All waters in the town water system are diverted to waste drain.
The rinse system requires a delivery of approx 150 litres/min at 2.5 bar (customer to supply)

Included in the sale is a Di water generating plant for the final rinse/seal station.

Purite Ecopure Skid C/D9 Di water plant.

An exchange bottle Deionised water plant with spare bottle set.
