Machines & equipment for sale

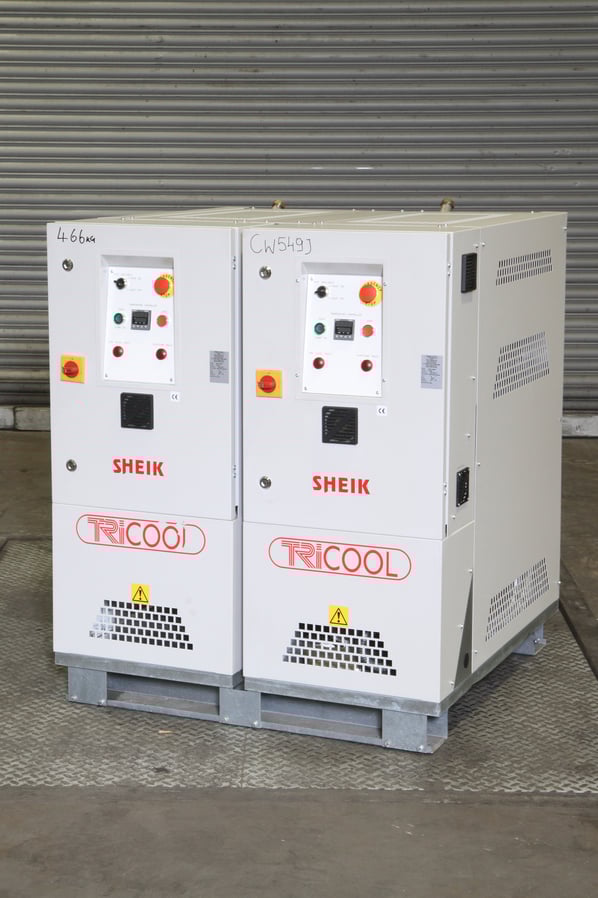

Tricool Sheik 48 kW Thermo Regulator

Stock No
Year of Manufacture
SO 4386 / SNO1482A/B
New or Used
Used (Second Hand)
Ave. Water Flow Rate
80 lpm @ 3 bar
Other Info
As NEW and Unused/electrically tested
Our Central Warehouse, Aldridge, UK
Weight (kgs)
External Dimensions (WxDxH mm)
1050 x 1300 x 1220


The UNUSED Tricool Sheik is designed for processes that require the control of fluid temperatures between 20 - 95°C with water and to 350°C for oil.

The temperature regulators have been devised to permit rapid heating with high input heaters, and the use of proportional automatic temperature control and solid state relays. This configuration permits the unit to adjust the power of the heating to exactly  match the duty of the process.

The temperature is constantly controlled by an opposing appropriate water cooling system.
Regulation of the desired temperature is through two minimum and maximum contacts, the former stops the heating and the latter inserts the cooling circuit offsetting increases in temperature due to thermal inertia of the product being cooled and the lamination temperature of the material.


Stainless steel heat exchanger

  • More efficient with large gaps between plates which reduces the risk of blocking due to contamination

Magnetic drive pump on units over 200°C

  • Seal-less, so low maintenance alleviates any leaks

Non ferrous internal parts

  • Keeps system clean, no rust from internal materials of unit Direct acting self cleaning solenoid valves
  • Low maintenance due to minimal cleaning required

Low volume tank

  • Low volume individual tubular heater tanks, which reduce the liquid volume in circulation, resulting in a reduced power input required for heating Diagnostic controller
  • Helps maintenance by showing any faults in the circuit that may occur

Solid state relays

  • Energy savings due to pulsing every 0.3 seconds (contactors generally every 16 seconds)
  • Increased accuracy
  • No wear and tear due to no moving parts


  • Max Flow/Pressure  lpm/bar 2 x 100/6.5
  • Heating 2 x 24 kW
  • Designed flow 80 lpm @ 3 bar
  • Process Connection 1" flange
  • Cooling Connection 1" BSP
  • Electrical load 80 Amps


As the unit has been made up of 2 x independent 24kW units with stand alone controls, standby and duty operation can be achieved at half the power rating. We would also consider splitting the units to make 2 individual 24 kW plants POA.

pdf icon Print / Download Tricool Sheik 48 kW Thermo Regulator Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
