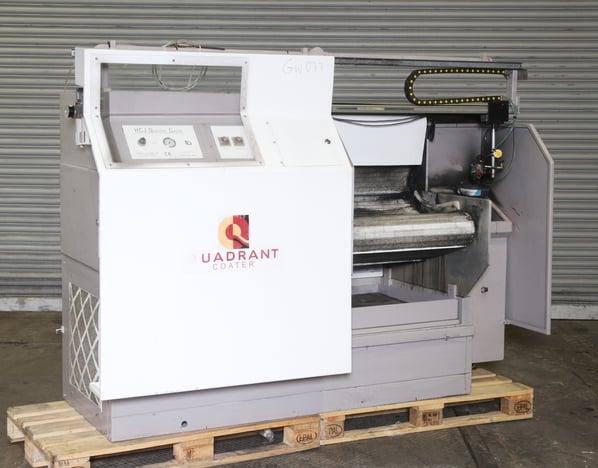

Ransohoff Quadrant Coater QC600 Paint Application Machine

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Availability:
In stock now
Stock No
GW077
Manufacturer
Ransohoff
Model
HCJ QUADRANT COATER
Year of Manufacture
1995
Serial
652
New or Used
Used (Second Hand)
Work Envelope (WxDxH mm)
660 X 500 X 240
Process Stages
Spray and bake machine.
Other Info
Recently OEM refurbished
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
1000
External Dimensions (WxDxH mm)
2230 X 1290 X 1660

Description

Ransohoff's patented QC (Quadrant Coater) provides exceptional coverage and close tolerance finishes for small and batch coating parts.

This machine was an ex demonstration machine from Ransohoff's demonstration facility before being fully reconditioned by themselves and sold for £15,000 in 2014. The purchasing company then only ran trials over 2 days with the machine, before deciding to change the process to an electrolytic paint application, rendering the machine surplus to requirements.

A great feature of the QC machine is its ability to coat the smallest and most intricate shaped components especially those within the Aerospace and Automotive industries.

This fully automatic coating machine ensures consistent and repeatable quality finishes through its patented belt loop system. The QC can be programmed to perform a uniform coating cycle to all surfaces of even the most complex shaped components while providing a consistent quality finish with a very high percentage of material utilisation.

Another great feature is the savings made on the amount of spray material used compared with other coating processes, making the QC machine a cost effective addition to your coating technology.

The revolutionary Quadrant Coater brings an added dimension to bulk coating techniques. Greater accuracy and better surface finish on previously difficult shapes can now be coated with all the economic advantages of an automatic bulk coating technique.

In principle the Quadrant Coater comprises a belt containing the components to be coated. This automatically feeds them into position' coats, dries and repositions. The cycle can then be repeated as required depending on the configuration of the component, before discharge for final cure, if required. The coating and drying cycles can be pre-programmed for each type of component and coating materials used.

With other coating processes the there is little control of the coating thickness of coating applied, especially for such things as fine threads on fasteners.

But with the quadrants unique design the coating tolerances for components coated with functional coatings such as fluorocarbons used for mechanisms or threaded fasteners where fit is just as vital as the corrosion resistance are vastly improved and meets the highest of standards set.

Technical details

  • External dimensions 2230 X 1290 X 1660 mm
  • Belt width 660 mm
  • Max process temperature 130kg
  • Input air volume 100cfm filtered
  • Extraction high level 900cfm
  • Extraction low level 400cfm
  • Air consumption max 20cfm
  • Power consumption 12 amps
  • Heaters 9kW
  • exhaust spigot 200 x 200 mm
  • Air service connection 3/8" bsp
  • Electrical supply 15 Amps
  • Pressure feed 2 gallon pressure pot with agitation motor and paddle







pdf icon Print / Download Ransohoff Quadrant Coater QC600 Paint Application Machine Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
