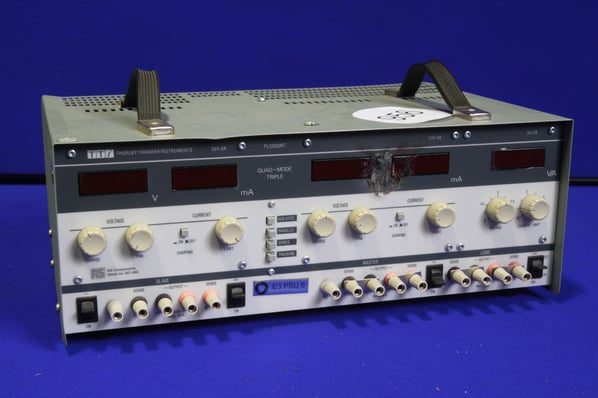

TTI Truhle PL320QMT Variable regulated DC power

Direct From Site Clearance

Direct Site Clearance Price [?]
£ 400 (+ VAT)
Clearance ends
23 August 2017 14:00 GMT while stocks last
Buyer's Premium [?]
15% BP will be added to your invoice
Part of a Direct Site Clearance
Electronic Test Equipment
Stock No
NAB956
New or Used
Used (Second Hand)
Location
Our Central Warehouse, Aldridge, UK

Description

PL Series Single, Dual and Triple Output PSUs

Variable series regulated DC power supplies designed for operation in both constant current and constant voltage mode.

Line and load regulation <0.01% of maximum output
Remote voltage & current sensing capability
Outputs continually displayed
Full short circuit, reverse voltage and overload protection
Current limit may be set prior to connecting load
Logarithmic current limit control
Single output: PL154, PL320, PL330
Single programmable model which can also be operated in Local (non-programmable) mode
Fitted with GPIB (to IEEE-488·2) & RS-232 (conventional or addressable) interfaces
Single programmable output PL330P
Dual programmable version of PL330P
Dual programmable output PL330DP
Unit comprises 2 power supplies with bank of 4 interlocked pushbutton switches which provide 4 separate modes of operation for the 2 main outputs
Dual output quad mode PL320QMD & PL330QMD
Variation of the dual quad mode PSU with additional independent high current output for powering 5V logic circuits
Triple output quad mode PL320QMT & PL330QMT

Technical specification
Line Voltage110, 120, 220, 240V a.c. ±10% @ 50/60Hz
Line Stability<0·01% of max. output for 10% change
Load Regulation<0·01% of max. output for 90% change
Ripple and Noise<1mV
Meter accuracy (20°C-25°C)Voltage 0·1% of reading +1 digit Current 0·3% of reading +1 digit
Meter ResolutionVoltage 0·01V; current 0·001A
Output Impedance<5mΩ @ 1kHz
Current LimitVariable by logarithmic control
SafetyConstructed to IEC 348
DimensionsW.170H.155 D.265 Wt.5kg

Aim-TTi - Linear Regulation

SpecificationsNot what you’re looking for? Select the attributes you require, then click the button below

 Output Voltage0 → 32 V, 4 → 6 V
 Output Current0 → 2 A, 0.1 → 4 A
 Number of Outputs3
 TypeDigital
 Power Rating240W
 Supply Voltage115 V ac, 230 V ac
 Number of Displays4
 Output ConnectorBinding Post Terminal
 CalibratedUKAS
 Minimum Temperature+5°C
 Maximum Temperature+40°C

pdf icon Print / Download TTI Truhle PL320QMT Variable regulated DC power Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
