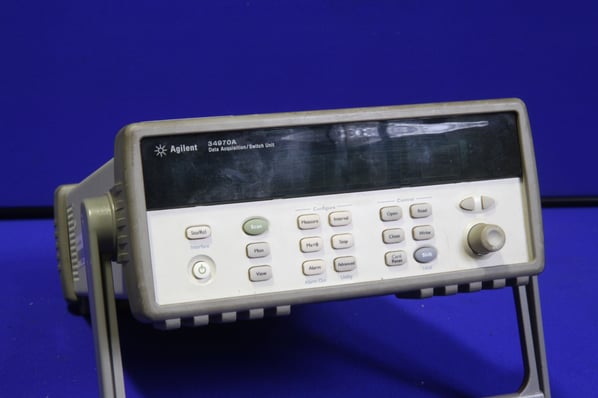

Agilent Technologies 34970A Data Acquisition Switch

Direct From Site Clearance

Direct Site Clearance Price [?]
£ 600 (+ VAT)
Clearance ends
23 August 2017 14:00 GMT while stocks last
Buyer's Premium [?]
15% BP will be added to your invoice
Part of a Direct Site Clearance
Electronic Test Equipment
Stock No
NAB944
New or Used
Used (Second Hand)
Location
Our Central Warehouse, Aldridge, UK

Description

34970A DAQ Switch Unit

The Keysight 34970A DAQ switch unit combines simplicity of user interface with low per-channel cost, modular flexibility and impressive measurement performance. Its versatility includes use as a data-logger, data acquisition front-end and switch system. It measures and converts temperature with thermocouples, RTDs & thermistors, dc & ac volts, 2-wire & 4-wire resistance, frequency & period and dc & ac current. Each channel is independently configurable. Built-in signal conditioning means users can measure 11 different functions without the added cost or hassle of external signal conditioning accessories. With an emphasis on flexibility, the 34970A also allows user to specify measurement functions by individual channel and take advantage of user-definable units, Mx + B scaling and alarm limits.

Intuitive front panel - task-oriented, self-guiding menus
50k readings of non-volatile memory holds data when power removed
6.5 digit internal DMM measures 11 functions without external signal conditioning
Monitor display mode for tests in progress
Scaling function for converting raw inputs into user-defined units
HI/LO alarm limits on each input channel plus 4 TTL alarm outputs
Battery-backed real-time clock for pacing scans and timestamping readings
3-slot mainframe offers up to 96 matrix crosspoints or 120 single-ended channels
8 switch and control plug-in modules to choose from
Built-in GPIB and RS-232 interfaces

Supplied with

Internal 6.5 digit DMM, operating and service manuals, test report, power cord, Quick Start package (Benchlink Data Logger II software, RS-232 cable, thermocouple, screwdriver)

Keysight USB Data Acquisition (DAQ)

The Keysight USB Data Acquisition (DAQ) family offers the choice and flexibility to create standalone or modular solutions that expand and evolve according to test requirements.

Selection Guide
Product FamilyU2300A Series Multifunction DAQU2500A Series Simultaneous Sampling DAQU2100A Isolated DIOU2600A Isolated DIOU2802A Signal Conditioner
Number of Models73331
Analog Input
Channels/Module, Maximum644--31
Sampling Rate, MaximumUp to 3 MS/s single channel
Up to 1 MS/s aggregate
Up to 2 MS/s/ch--Up to 500 kS/s *
ResolutionUp to 16-bitUp to 16-bit--Up to 16-bit *
Input Voltage, Maximum10V10V--10V *
Simultaneous Sampling-Yes---
On-board Memory8 Ms8 Ms---
Thermocouple Signal Conditioning----Yes
Analog Output
Channels/Module, Maximum22--2 *
Update Rate, Maximum1 MS/s1 MS/s--1 MS/s *
ResolutionUp to 16-bit12-bit--12-bit *
Output Voltage, Maximum10V10V--10V *
Digital I/O
Channels/Module, Maximum24243264-
Input Levels, Maximum5V5V24V24V-
Output Levels, Maximum5V5V24V35V-
Counter
Channels22---
Maximum Count(231-1) bits(231-1) bits---
Software and Drivers
Agilent Measurement ManagerYesYes-YesYes
Agient DIO Diagnostics--Yes--
IVI-COMYesYesYesYesYes
Agilent VEEYesYesYesYesYes
Compatibility with U2781AYesYes-Yes-
Synchronization between ModulesYesYes-Yes-
* Dependent on U2300A module selected



 Number of Input Channels20
 Sampling Rate3Msps
 Resolution22 bit
 ConnectivityGPIB, RS232
 On Board Memory50kB
 Power SourceBattery, Mains
 Input TypeDigital
 Battery Life4 yr
 Dimensions254.4 x 374 x 103.6mm
 Weight3.6kg
 Height103.6mm
 Length254.4mm
 Model Number p34970A
 Minimum Operating Temperature0°C
 Width374mm
 Maximum Operating Temperature+55°C



Current NEW Price £1,200.00

pdf icon Print / Download Agilent Technologies 34970A Data Acquisition Switch Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
